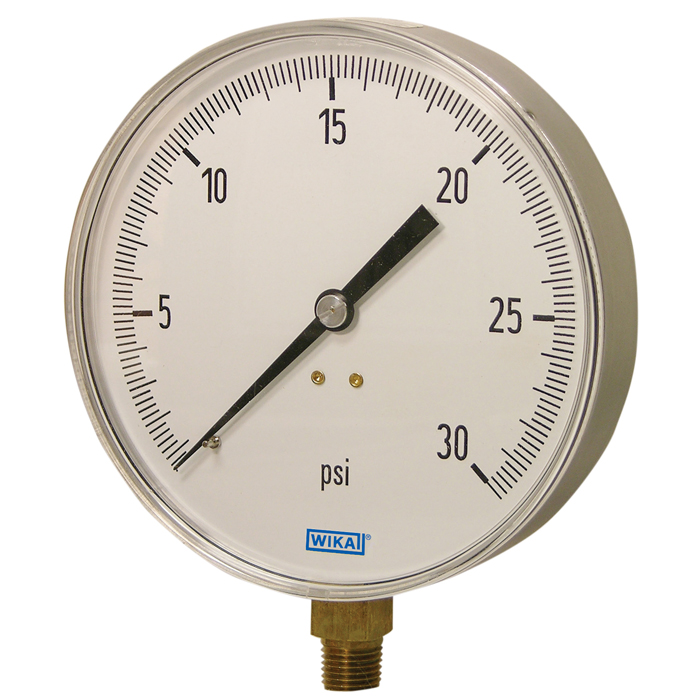

Contractor Gauge Standard Series
Applications
DesignASME B40.100
Sizes4½” (115 mm)
Accuracy class± 1% of span (ASME B40.100 Grade 1A)
RangesVacuum / Compound to 200 psi (16 bar)Pressure from 15 psi (1 bar) to 600 psi (40 bar)or other equivalent units of pressure or vacuum
Working pressureSteady: 3/4 of full scale valueFluctuating: 2/3 of full scale valueShort time: full scale value
Operating temperatureAmbient: -40°F to 140°F (-40°C to 60°C)Media: 140°F (+60°C) maximum
Temperature errorAdditional error when temperature changesfrom reference temperature of 68°F (20°C)+0.4% of span for every 18°F (10°K) rising or falling.
Pressure connectionMaterial: Copper alloy1/8“ or 1/4“ NPT lower mount (LM)
Bourdon tubeMaterial: copper alloyC-shape
MovementCopper alloy
DialWhite aluminum with stop pin and black lettering
PointerBlack aluminum, adjustable
CaseStainless steel, matte finish
WindowSnap-in polycarbonate
