500°F (260°C)
Applications
For threaded pressure measuring instruments in high temperature applications exceeding the allowable media temperature range of the instrument
Can be used for corrosive media that is compatible to 316L stainless steel
For media temperatures up to 500°F (260°C) if used on instruments with stainless steel wetted parts
For media temperatures up to 440°F (227°C) if used on instruments with copper alloy wetted parts

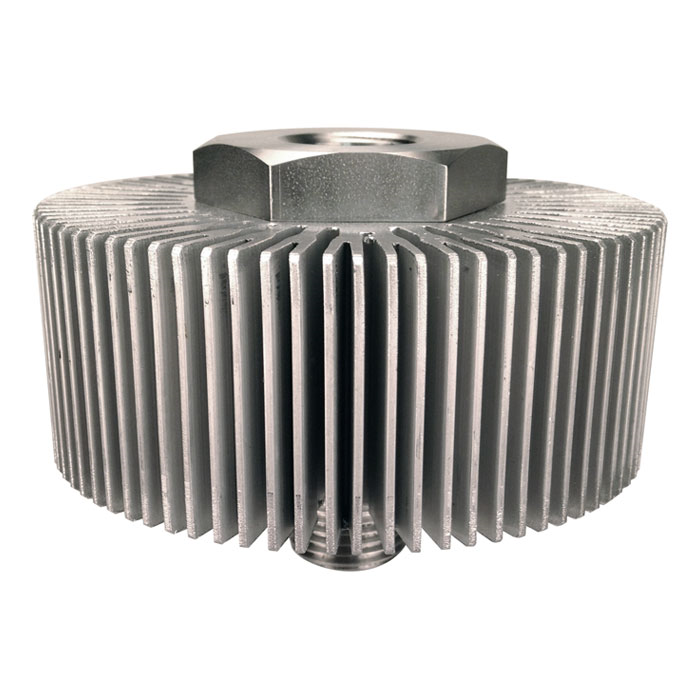

Body made of 316L stainless steel with aluminum heat sinks
This new compact cooling adaptor is the ideal solution in application with high media temperature and tight spaces. The cooling adaptor with heat sink provides creates a temperature drop of approx. 300°F (149°C). Results vary based on environmental conditions
Material316L stainless steel
Connection1/2”NPT female x 1/2”NPT maleOther connections on inquiry
Pressure RatingMax. 6500 psi (450 bar) at a temperature of 500°F (260°C)
Weight1.5 lbs. (675 g)
Part Number52667081 (1/2”NPT-F x 1/2”NPT-M)
Model 910.32
For threaded attachment
Model 910.32.100
400°F (204°C)
