For sanitary applications
Applications
Special Features
DesignExternal, flush diaphragm with Tri-Clamp connection, requires hydraulic fluid to transmit pressure to instrument. Unit is autoclaveable when dry case and polysulfone window are specified.
Process Connection¾" Tri-Clamp
Pressure Ranges1,500 psi maximum, limited by installation clamp rating
Operating TemperatureMedia: +10°F to 100°C (standard)(>100°C available - consult factory)
Ambient: +10°C to +60°C
Gauge Size2½", lower mount
Accuracy (Ref. 73°F)±2/1/2% full span (ASME B40.100, Grade A)
Wetted Parts316L SS, electropolished
System Fill (FDA Approved)Glycerine, KN 7: Non-vacuum applicationMineral Oil, KN 92: Vacuum application
Material Identification and Heat NumbersEngraved in seal body or gauge case
Serial NumberEngraved on back of case
Models M932.D1, M933.D1
Assembled diaphragm seal, with threaded connection
Model 990.30
Models M932.3A, M933.3A
Model M932.2C

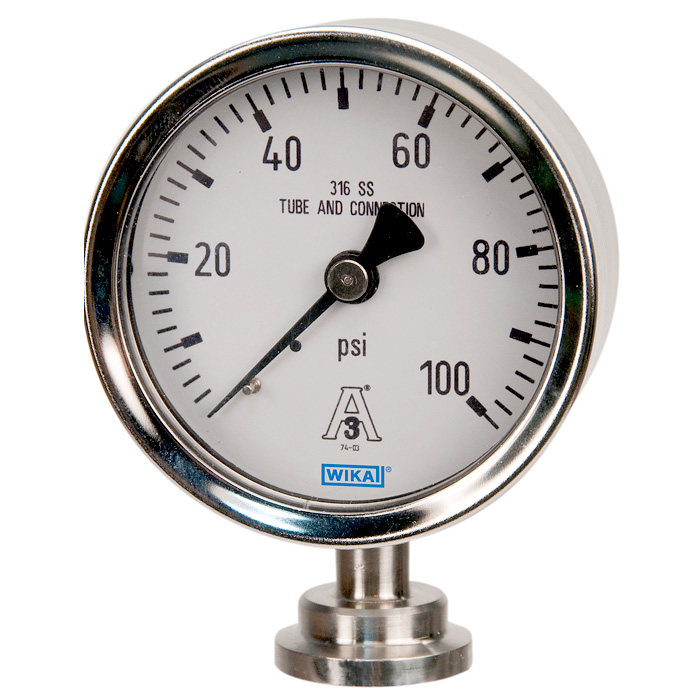

M932.25 Sanitary Gauge
