For sanitary applications
Applications
Special Features

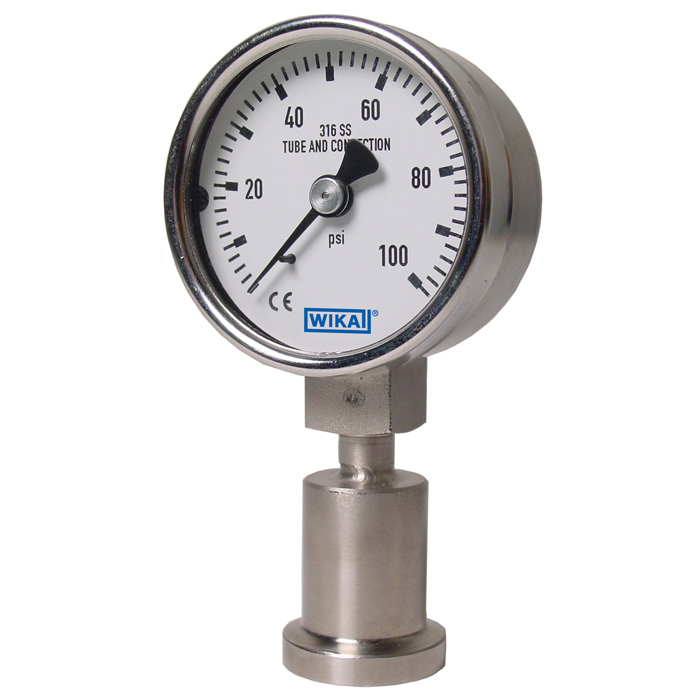

DesignType M932.2C sanitary gauge assembly provides a ¾" Tri-Clamp® process connection welded to a 1½" or 2" stainless steel gauge. This assembly meets the criteria set by "3A". This gauge is ideal for applications in the food & beverage, pharmaceutical and biotechnology industries.
Process Connection¾" Tri Clamp®
Pressure Ranges1,500 psi maximum limited by installation clamp rating
Operating TemperatureMedia: +10°C to 100°CAmbient: +10°C to +60°C
Gauge Size1½" or 2", lower back mount
Wetted Parts316L SS
System Fill (FDA approved)Glycerine, KN 7 - non-vacuum applicationMineral oil, KN 92 - vacuum application
Models M932.3A, M933.3A
Models M932.D1, M933.D1
Assembled diaphragm seal, with threaded connection
Model 990.30
Models M932.25, M933.25
