Paper Machine Gauge
Applications
DesignASME B40.100 & EN 837-1
Sizes3½” (80 mm)
Accuracy class± 2/1/2% of span (ASME B40.100 Grade A)
RangesVacuum / Compound to 200 psi (16 bar)Pressure from 15 psi (1 bar) to 15,000 psi (1,000 bar)or other equivalent units of pressure or vacuum
Working pressureSteady: 3/4 scale valueFluctuating: 2/3 full scale valueShort time: full scale value
Operating temperatureAmbient: -40°F to +140°F (-40°C to +60°C) - dry -4°F to +140°F (-20°C to +60°C) - glycerine filledMedium: max. +140°F (+60°C) ≤1,000 psi
Temperature errorAdditional error when temperature changes fromreference temperature of 68°F (20°C) ±0.4% of span for every 18°F (10°K) rising or falling.
Weather protectionWeather resistant (NEMA 4 / IP 66)
Pressure connectionMaterial: copper alloy1/4” NPT lower back mount (LBM)
Bourdon tubeMaterial: copper alloy≤ 1,000 psi (70 bar): C-shape copper alloy> 1,000 psi (70 bar): Helical stainless steel
MovementCopper alloy
DialWhite aluminum with black lettering
PointerBlack aluminum
CaseGold-painted forged brass with integral connectionand pressure relief plug with polished stainless steel front flange. Suitable for liquid filling
WindowAcrylic with Buna-N gasket
Model 213.53
Model 212.53 - Dry Case Model 213.53 - Liquid-filled Case
Model 232.54XMAS
Tree Gauge, All Stainless Steel Construction
Model 213.53DW
Stainless Steel Case Drinking Water Series,Liquid Filled
Model 233.55
All Stainless Steel Construction, Panel Builder Gauge
Models 232.50, 233.50
Stainless Steel Series
Model 212.20
Stainless steel case, NS 100 and 160

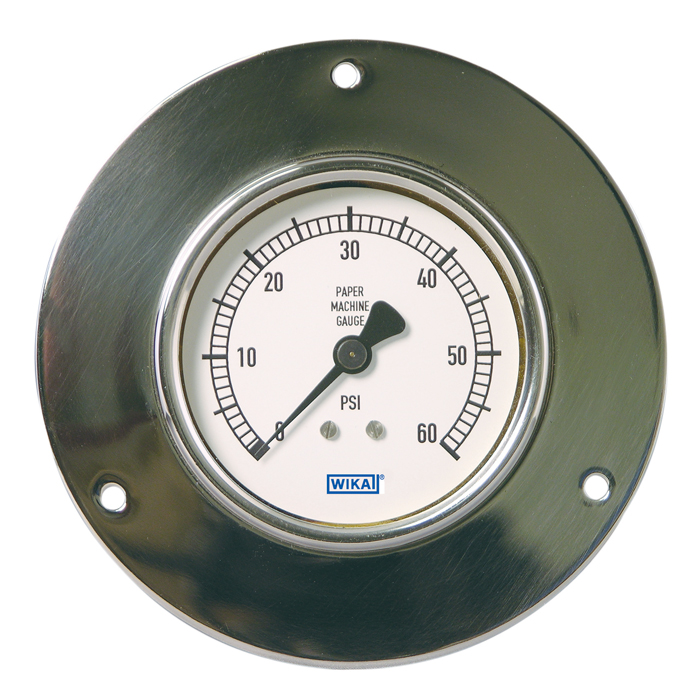

Bourdon Tube Pressure Gauges Type 212.40PM - Dry Case Type 213.40PM - Liquid-filled Case
