Special Pressure Gauge
Applications
DesignASME B40.100
Sizes4½” (115 mm) dial size
Accuracy class± 0.5% of span (ASME B40.100 Grade 2A)± 1.0% of span (ASME B40.100 Grade 1A)for 20,000 psi (1,600 bar) range and above
Temperature errorAdditional error when temperature changes from reference temperature of 68°F (20°C) ±0.4% of span for every 18°F (10°K) rising or falling.
Operating temperatureAmbient: -4°F to +150°F (-20°C to +66°C) - glycerine filledMedium: max. +212°F (+100°C)
RangesVacuum/compound to 200 psi (16 bar)Pressure from 15 psi (1 bar) to 30,000 psi (2,000 bar) or other equivalent units of pressure or vacuum
Working pressureSteady: full-scale valueFluctuating: 0.9 x full-scale valueShort time: 1.5 x full-scale value
Pressure connectionMaterial: 316L SSLower mount (LM) or lower back mount (LBM)Optional: ½” NPT (male)High-pressure autoclave, F250C (9/16-18 UNF RH female)or consult factory
Bourdon tubeMaterial: 316L SS≤ 1,000 psi (70 bar): C-shape,> 1,000 psi (70 bar): Helical
Model 212.25
Hinged Ring Process Gauge Brass Wetted Parts
Model 233.50SUBSEA
All Stainless Steel - Special Compensated
Models 212.34, 213.34
Copper Alloy
Models 222.34, 223.34
Model 232.25
Hinged Ring Process Gauge 316SS Wetted Parts
Models 262.34, 263.34
Monel® Alloy Parts

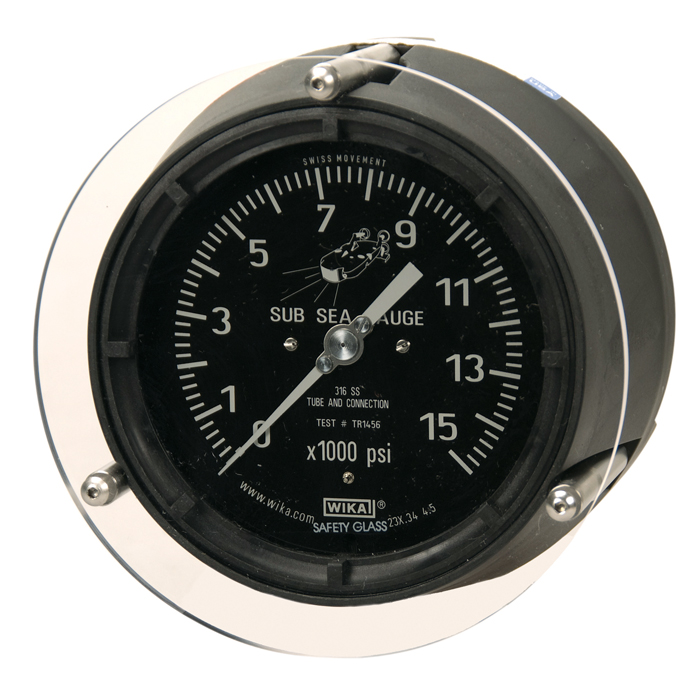

Subsea Gauge Stainless Steel Model 233.34 Subsea
