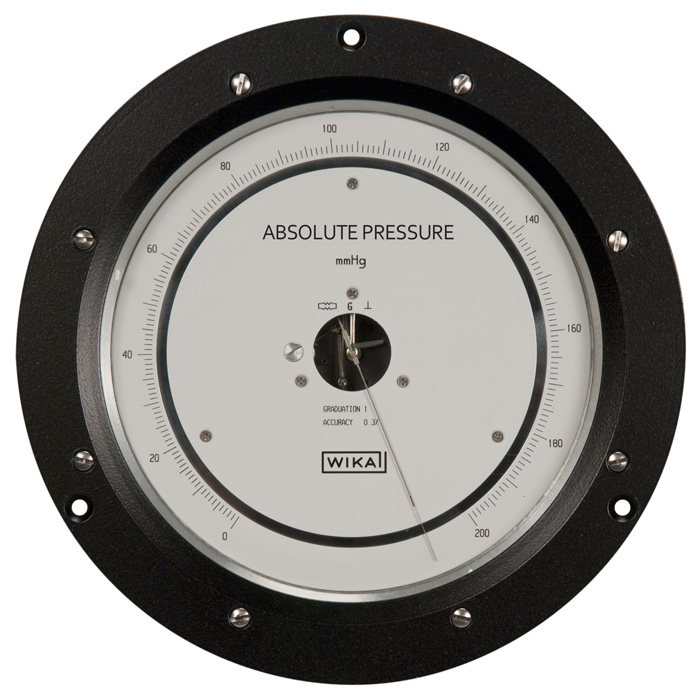

Size
6" dial
Scale length
16"
Range
To 30 psia
Accuracy
0.3% of full scale
Sensitivity
0.2% of full scale
Case pressure and volume
15 psig maximum, 395-cc volume with an optional, overpressure relief valve available to protect the case
Maximum case leak rate
Will not exceed 1.44 x 10-5 std cc/sec or 0.0019 psi/hr.
Case connection
⅛" female NPT with built-in stainless steel filter. Connection located on back of case
Case construction
Aluminum with tempered-glass window
Flush mounted by three screws through the bezel
Material exposed to measured gas
Aluminum, beryllium copper, brass, stainless steel, nylon, E.P.R. Monel, lead, nickel-plated phosphor bronze, soft or silver solder, synthetic sapphire, paper, epoxy cement, TFE, nickel silver, nickel plating, drawing ink, lacquer
Options
Calibration in most metric units available at no extra cost. Other calibration units and two sets of graduations on the same dial are available at extra cost. Also available are excess pressure-relief valves for 2 and 15 psig.
Weight and shipping weight
Approx. 5 lbs.
Order Information
When ordering, please specify ordering number, range, and mounting angle. (Extra cost if mounting angle is other than vertical) Options as listed above.
Note: This gauge should not be used for corrosive gases or for liquids of any kind
