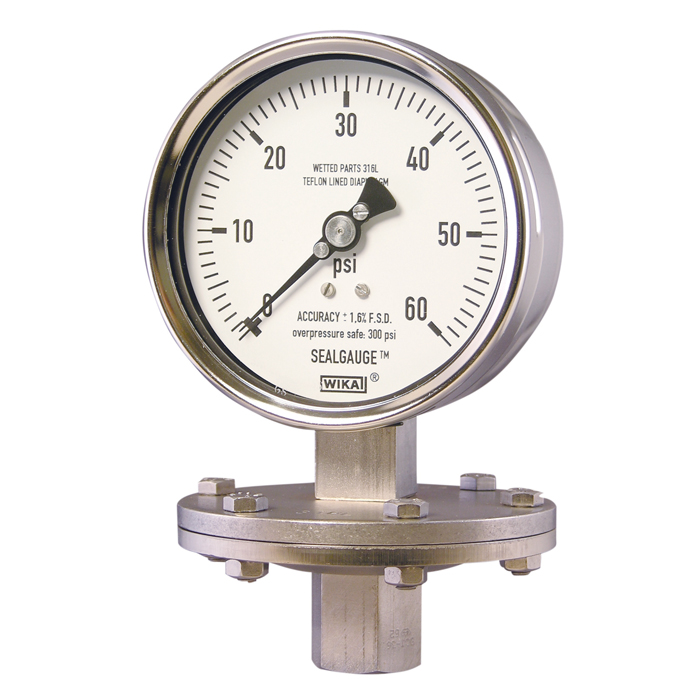

Process Industry Series Sealgauge Solid Front Case
Applications
DesignEN 837-3
Sizes4” & 6” (100 & 160 mm)
Accuracy class± 1.5% of span
RangesVacuum / Compound to 300 psi (20 bar)Pressure from 6” H2O (16 mbar) to 100" H2O (250 mbar), 6" (160 mm) flange diameterPressure from 6 psi (400 mbar) to 360 psi (25 bar), 4” (100 mm) flange diameteror other equivalent units of pressure or vacuum
Working pressureSteady: full scale valueFluctuating: 0.9 x full scale value
Overpressure safety5 x full scale value, max. 600 psi (400 bar)
Operating temperatureAmbient: -4°F to +140°F(-20°C to +60°C)Medium: +212°F(+100°C) maximum
Temperature errorAdditional error when temperature changes from reference temperature of 68°F (20°C) ±0.8% of span for every 18°F (10°K) rising or falling.
Weather protectionWeather resistant (NEMA 3 / IP54)-dry caseWeather tight (NEMA 4X / IP66) -liquid-filled case
Pressure connection and lower diaphragm housingMaterial: 316L stainless steelLower mount (LM)1/2” NPT female
Case and upper diaphragm housingMaterial: stainless steelCase with solid-baffle wall and blowout back and stainless steel bayonet ring
Diaphragm element≤100” H2O (250 mbar): 316 stainless steel>100” H2O (250 mbar): Inconel® (NiCr-alloy)All ranges with FPM (Viton) sealing gasket
MovementStainless steel
DialWhite aluminum with black lettering
PointerBlack aluminum, adjustable -Type 432.30Black aluminum, non-adjustable-Type 433.3z0
WindowLaminated safety glass with Buna-N gasket
Case fillGlycerine 86.5%
Models 432.56, 432.36
Process Industry Series
Models 432.50, 433.50
Process Industry Series Sealgauge Dry Case / Liquid-filled Case
Models 422.12, 423.12
Grey cast iron case
Models 432.36, 433.36
Process Industry Series, Solid Front Case
Models 452.50, 453.50
Diaphragm Pressure Gauge Type 432.30 - Dry Case Type 433.30 - Liquid-filled Case
