Type 910.15.300
Applications
Siphons are typically used to protect pressure instruments in steam service or other hot vapor applications. Many plants use siphon wraps and thermally isolate siphons to protect workers from potential burn injuries. However, thermal insulations on siphons also prevent the basic function to condense vapor into water and thus creating a protective barrier between the hot steam and the pressure gauge.

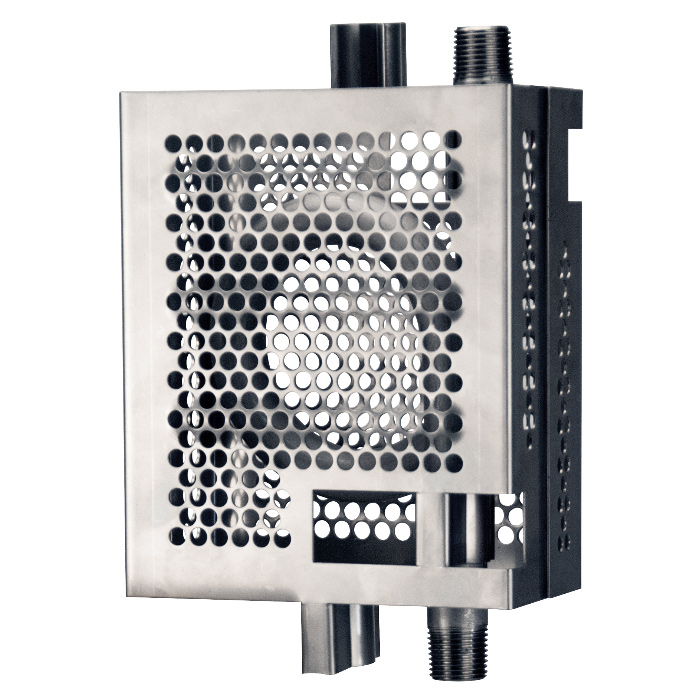

WIKA developed a special protective cage which encloses the siphon and protects workers from potential burn injuries when accidentally touching hot siphons.
The WIKA protective cage fits most standard pigtail and coil siphons with 1/2" NPT connection. Pressure Connection
Specification
Material304 stainless steel
For use withMost common 1/2" NPT pigtail and coil siphons with an OD of approx. 0.85 inches (22 mm)Not for use with 1/4" NPT mini siphons
Weight1.1 lbs. (0.5 kg)
InstallationFor coil siphon use center clampsFor pigtail siphon use right clampsNote: Only one siphon to be assembled at a time.
Part Number52649482
