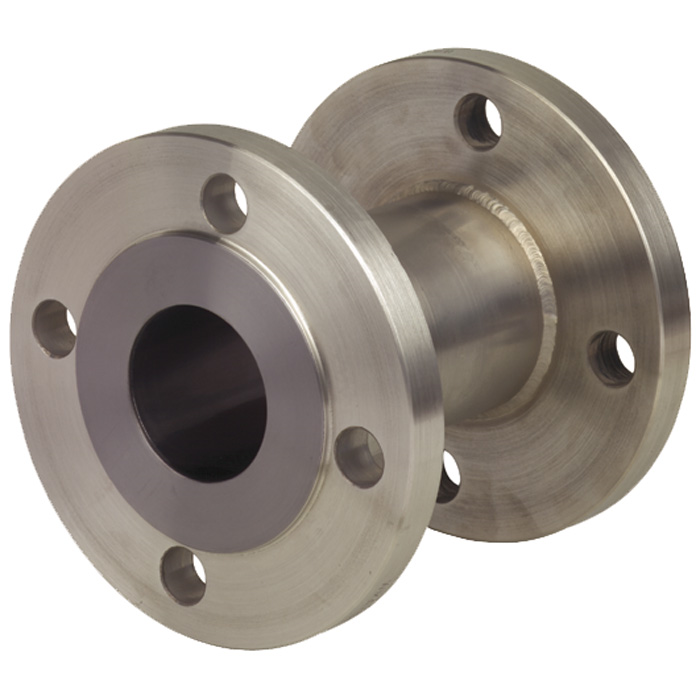

For Flange Connections, Flange Type
Application
Special Features
Process connectionSealing face, Form B1 or ASME RF 125 ... 250 AA
For flanges following ASME B 16.5, 1", 2", 3", 4"Nominal size: see drawing and tables on datasheet
Pressure ratingClass 150/300
Pressure rangespreferably mounted to pressure gauges NS 63, 100, 160 or pressure transmitters, Pressure ranges 0 ... 15 to 0 ... 600 psi
Housing and material of wetted partsStainless steel (AISI 316L)
Measuring instrument connectionPressure gauge or transmitter directly welded, process pressure transmitter with threaded adapter
Process connection
Material of wetted parts
Measuring instrument connection
Capillary
Model 910.17
For measuring instruments and instrumentation accessories
Model 910.21
For mounting to zone 0 (EPL Ga)
Model 910.16
Model 981.10
For flange connection, cell-type
Model 990.26
With internal diaphragm
Model 990.28
Cell-Type (Sandwich) Seals
Model 990.27
With flush diaphragm
