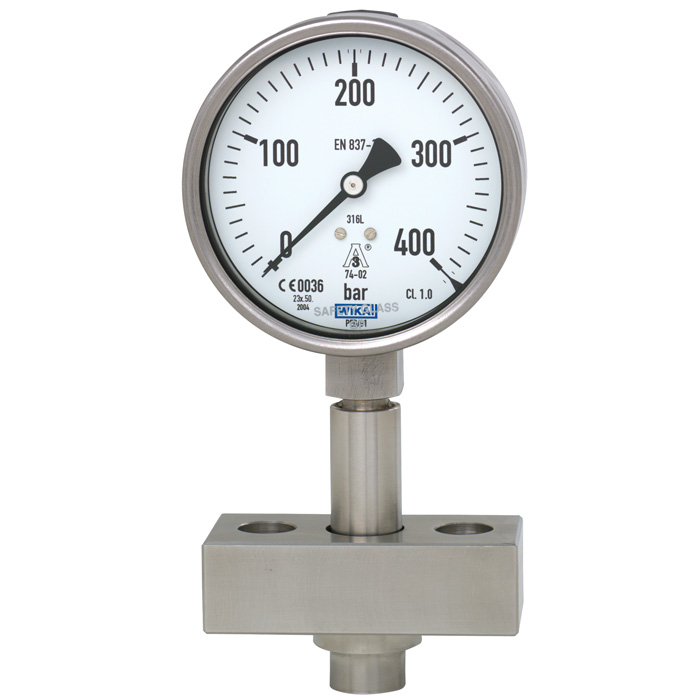

Model 990.30

Assembled diaphragm seal

For sanitary applications

Selected documents
Sales contact Questions? Find a contact in your vicinity.


  • Measurement of homogenizing pressure on homogenizers
  • Food and beverage production, dairies, pharmaceutical industry
  • Production of cosmetics and creams

Special Features

  • Damped, robust
  • Fully welded design
  • Manufacturer-specific versions available
  • Flush welded diaphragm
  • Conform to the 3-A 74-06 standard based on a third party verification (TPV)


Process connection
flush diaphragm with or without flange

Pressure ranges
0...1,500 psi up to 0...23,200 psi

Wetted parts material
Stainless steel 1.4435 (316L)

Instrument connection
Pressure gauge or transmitter directly welded

see data sheet
