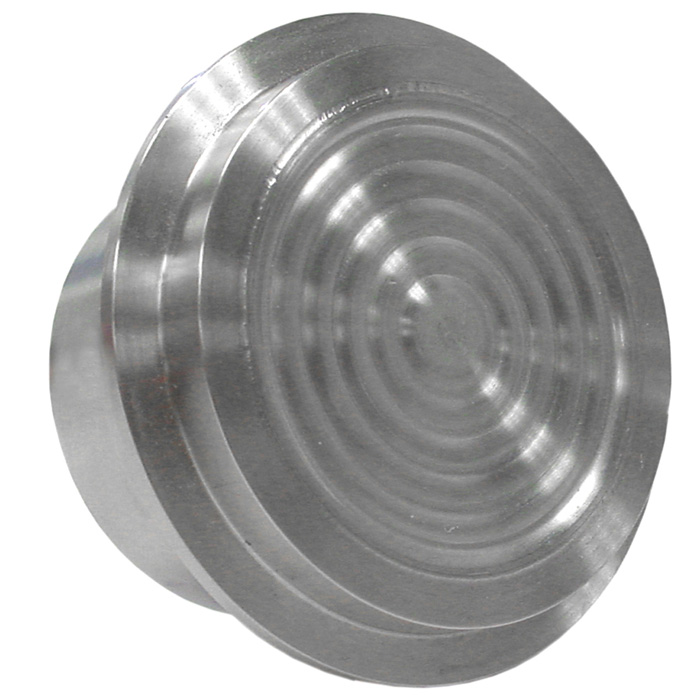

Model L990.57

Clamped Sanitary Diaphragm Seal

Selected documents
Sales contact Questions? Find a contact in your vicinity.

Applications

  • Food & Beverage and Pharmaceutical industry diaphragm seal to combine with Bourdon tube pressure gauges.
  • Intended for hygienic pressure media.

Special Features

  • Sanitary Process Connection (Cherry Burrell®)
  • Material Selection
  • Male or Female Connection

Description

Application
Food & Beverage and Pharmaceutical industry diaphragm seal to combine with Bourdon tube pressure gauges. Intended for hygienic pressure media.

Design
External, flush diaphragm for Cherry Burrell® connection, which requires hydraulic fluid to transmit pressure to instrument

Process Connection
1 ½" to 3" (I-Line)

Instrument Connection
Capillary, ¼" or ½" NPT-female

Suitable Pressure Ranges
15 PSI to 350PSI (up to 500PSI)

Available Options (connections, materials, etc.)
See Selection Guide on data sheet
