Back to overview
Threaded Design
Applications
Special Features
Pressure ratingPN 25 ... 40 resp. class 150 ... 600
Suitable pressure ranges0 ... 15 psi to 0 ... 1000 psi
Upper housing (instrument connection)Material stainless steel 316 L, ½ NPT
DiaphragmMaterial stainless steel 316 L, welded with upper housingEffective diameter of diaphragm Mb = 2.1"
Sealing ringFPM (Viton®) max. 392 °F

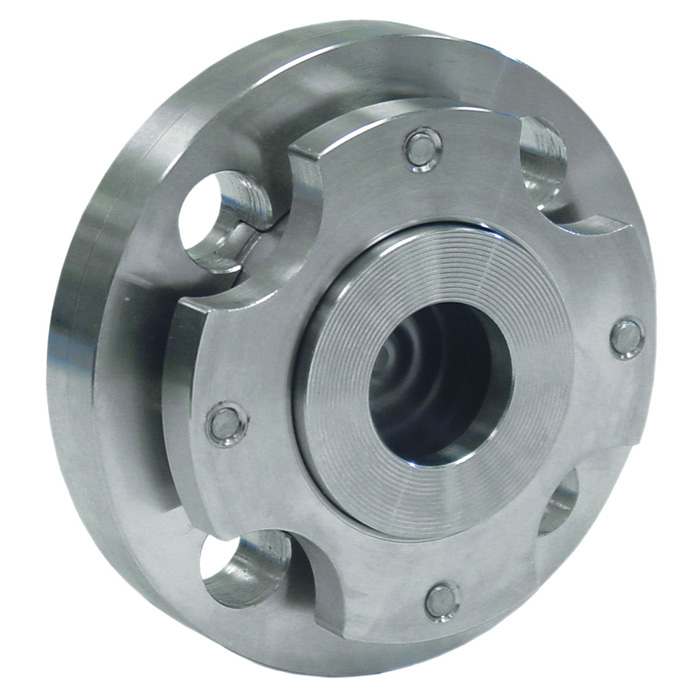

Lower housing (process connection)Material stainless steel 316 LNPS 1", 1½" per ASME B 16.5, RF 125 ... 250 AA
Fastening partsRetainer flange, hexagonal bolts and nuts:galvanised steel max. 392 °F
Upper housing (instrument connection)
Diaphragm
Model 990.27
With flush diaphragm
Model 990.FA
Model 990.35
Cell-type with extended diaphragm
Model 990.FB
Flanged Connection
Model 990.28
Cell-Type (Sandwich) Seals
Model 990.23
For the pulp and paper industry
