Model A2G-60

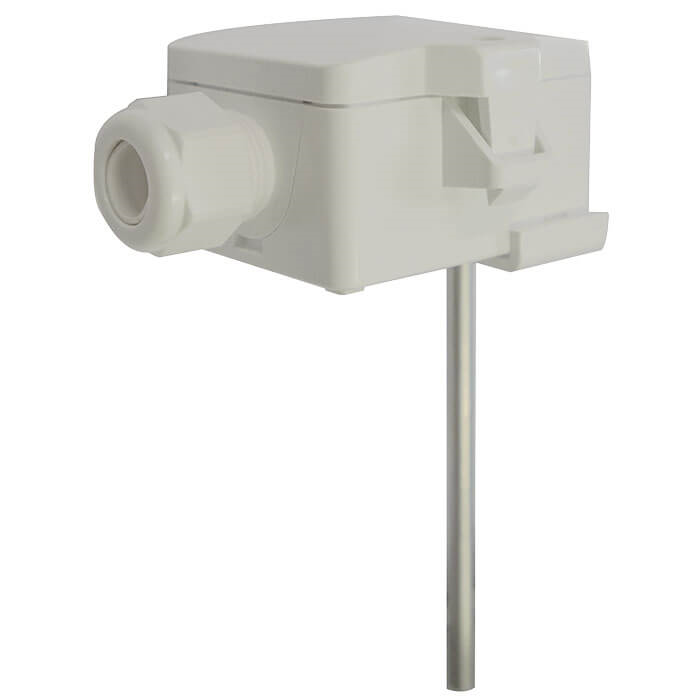

Duct/Immersion Temperature Sensors A2G-60, air2guide

Selected documents
Sales contact Questions? Find a contact in your vicinity.


  • For temperature measurement of gaseous media in HVAC systems
  • Designed to be used with PLC’s and other control and display panels
  • Suitable for liquid media if installed inside a thermowell

Special Features

  • Easy installation
  • Six selectable temperature ranges
  • Compact and robust design
  • Directly mounted into the process (gaseous media only)
  • Comes standard with mounting flange


per EN 60 730-1 (2000)
CE-conformity: 89/336/EWG
Electromagnetic compatibility

Accuracy @ 21 °C
±1% of measuring range

Scale ranges
+32 °F … +122 °F factory set temperature
-58 °F … +122 °F adjustable via jumpers
+5 °F … +95 °F adjustable via jumpers
+14 °F … 248°F adjustable via jumpers
+32 °F … +320 °F adjustable via jumpers
+32 °F … +482 °F adjustable via jumpers

Ambient temperature at the connecting head
-31 … +158 °F

Power consumption
Typically 0.35 W / 0.82 VA

Version "TRV": 0 … 10V, 3-wire, min. load 5KOhm Version " TRA": 4 … 20 mA, 2-wire
Without (sensor only)

Ingress protection
NEMA 3 (IP 65 per EN 60 529 / lEC 529)
