With external thread up to 3,300 kN
The tension/compression force transducer is used wherever measurements are to be taken directly in the line of force. The actual tension forces in cables and rods can thus, for example, be measured.

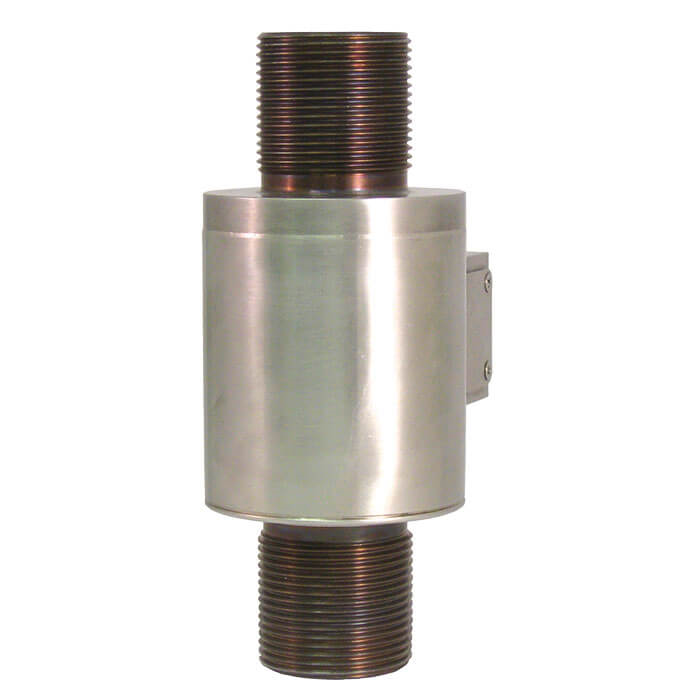

With this model, the load is applied via the threaded pins which are located on each side of the cylindrical body. The robust structure, which is manufactured from stainless steel, also allows it to be used in extremely harsh industrial atmospheres.
The tension/compression force transducer are splash water protected and function reliably even under difficult service conditions.
NoteIn order to avoid overloading, it is necessary to connect the force transducer electrically during installation and to monitor the measured value.The force to be measured must be applied concentrically and free of transverse force.Options
Models F2301, F23C1, F23S1
With thin-film technology to 500 kN
