To 2,000 kg
Shear beams are suitable for static and dynamic measuring requirements. They serve for determining shear forces in diverse fields of application.
These shear beams are used in industrial weighing and laboratory technology, and also in the process industry.

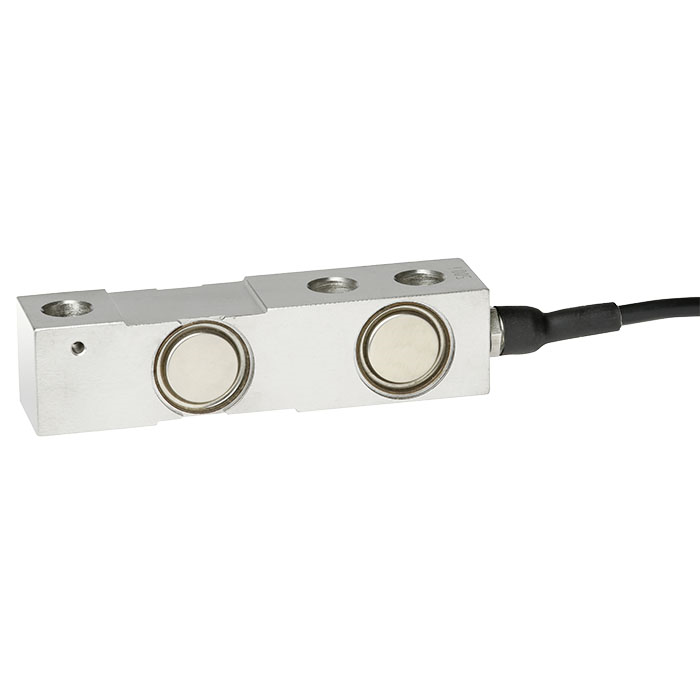

The F3201 shear beams are made of stainless steel, whose properties are particularly suitable for the fields of application in scales, laboratory technology and stage construction. An mV/V signal is provided as the output signal.
To avoid overloading, the shear beam should be electrically connected and the measured value monitored during assembly.
The measuring force must be introduced through the centre and free of transverse force. When assembling the shear beam, care should be taken that the support surface is flat.
Compatible force introduction pieces are available as an option.
Models F3301, F33C1, F33S1
With thin-film technology up to 100 kN
Model F3831
load cell up to 10 t
