For emission-free filling and refilling

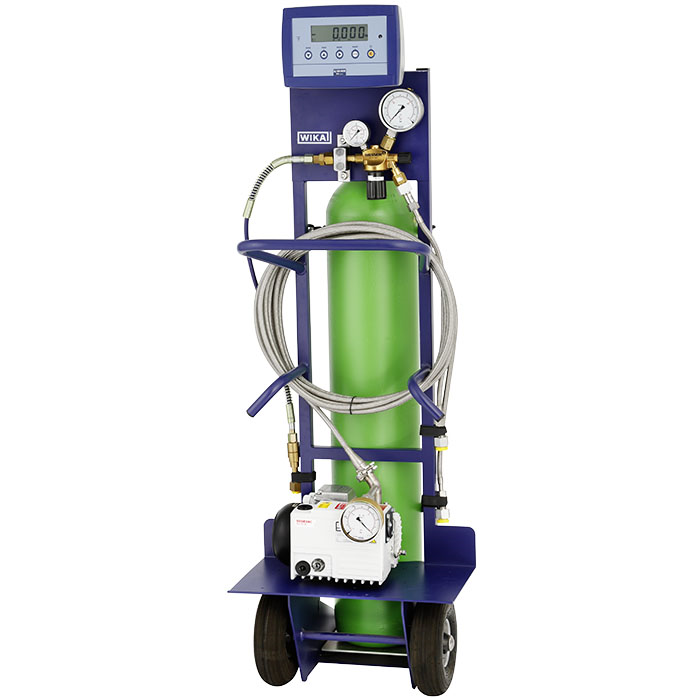

Modular design of the SF6 gas cart seriesThe GFU08 series of modular gas cylinder transport carts are used for the filling and refilling of SF6 gas in the required gas compartment. The modular design enables worldwide application through the various mechanical and electrical connections.
The model range of the SF6 gas cart series is divided into 4 versions:
High-performance vacuum pumpsModels GFU08-E and GFU08-C of the SF6 gas cart series are fitted with vacuum pumps. With these, the air is extracted from the SF₆ gas compartments so that, afterwards, a professional filling can be made with SF₆ gas.
The basic version of the vacuum pump (model GVP-10) already has a suction throughput of 10 m³/h for fastpumping out, down to a final partial pressure of ≤ 2.0 x 10-2 mbar [< 1.5 x 10-2 Torr].
For larger volumes, more powerful vacuum pumps are available, with a suction throughput of up to 44 m³/h. With 2-stage pumps, the final pressure can be reduced down to < 2.0 x 10-3 mbar [< 1.5 x 10-3 Torr]. The risk of either too high humidity or air concentration in the SF6 gas compartment is therefore not a consideration.
High-accuracy scalesHigh-accuracy scales determine exactly the filled SF₆ gas volume. Thus, the SF6 gas cart model GFU08 is an ideal tool for using the mass-balance method in accordance with the IPCC directive for the preparation of emission reports. The flat design of the scales enables easy loading and unloading of the heavy gas cylinder by only one person.
