For industrial applications, with temperature output

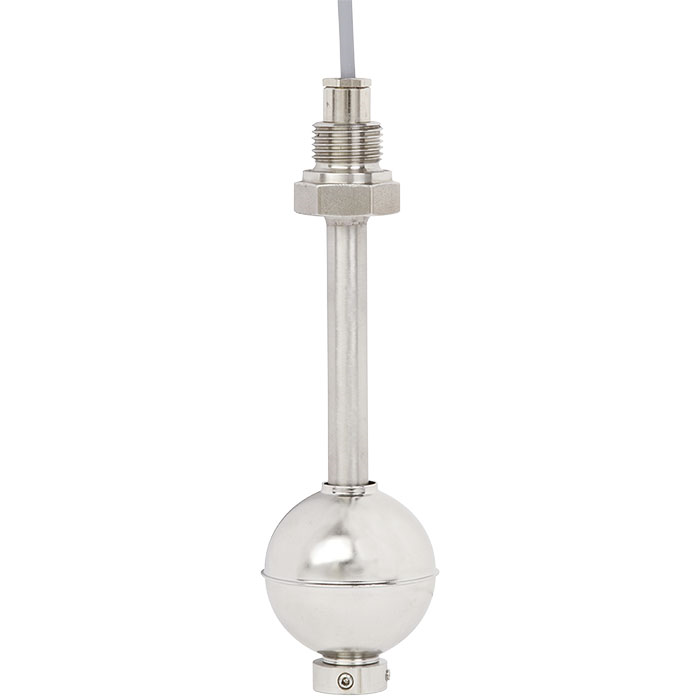

The model RLS-3000 float switch with temperature output combines the recording of the level and temperature of liquids in a single measuring point. The stainless steel used is suitable for a multitude of media, such as, for example, oil, water, diesel and refrigerants.
Measuring principleA permanent magnet built into the float triggers, with its magnetic field, the potential-free reed contacts built into the guide tube. The triggering of the reed contacts by the permanent magnet is contact-free and thus free from wear.
Depending on customer wishes, the switching functions of normally open, normally closed or change-over can be realised for the defined liquid level.
The additional temperature output enables the medium temperature to be monitored by means of a preconfigured bimetal temperature switch or a Pt100/Pt1000 resistance signal.
Model RLS-1000
For industrial applications
Model RLS-2000
For industrial applications, plastic version
Model RLT-3000
