Bimetal version, for switching voltages up to 48 V
Temperature switches are generally used in industry for limiting temperature. They monitor the temperature of machinery and equipment and, for example, switch off machinery if it overheats or switch on a fan to cool the equipment.
FunctionBimetals form the basis of the WIKA TFS35 temperature switches. Temperature sensing is carried out by a bimetal disc, which snaps over when the nominal switching temperature (NST) is reached.
On cooling back down to the reset switching temperature (RST), the temperature switch returns to its original state.
The reset switching temperature is typically 15 ... 40 K below the switching temperature.
Contact designThe model TFS35 bimetal temperature switch can be delivered in two contact designs.
A Normally Closed (NC = closed in the normal state) opens a circuit and shuts down the machinery.
A Normally Open (NO = open in the normal state) closes a circuit on reaching the switching temperature, in order that, for example, a fan or warning lamp can be switched on.
After cooling down below the reset switching temperature, the contact returns to the original state, so that the monitored equipment can again work normally.
Model TFS135
For switching voltages up to 250 V

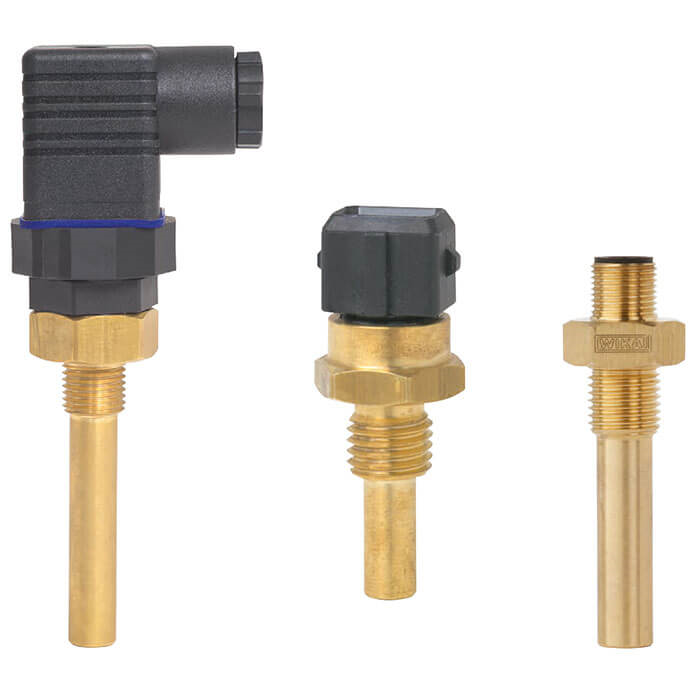

Bimetal Temperature Switch -- model TFS35
