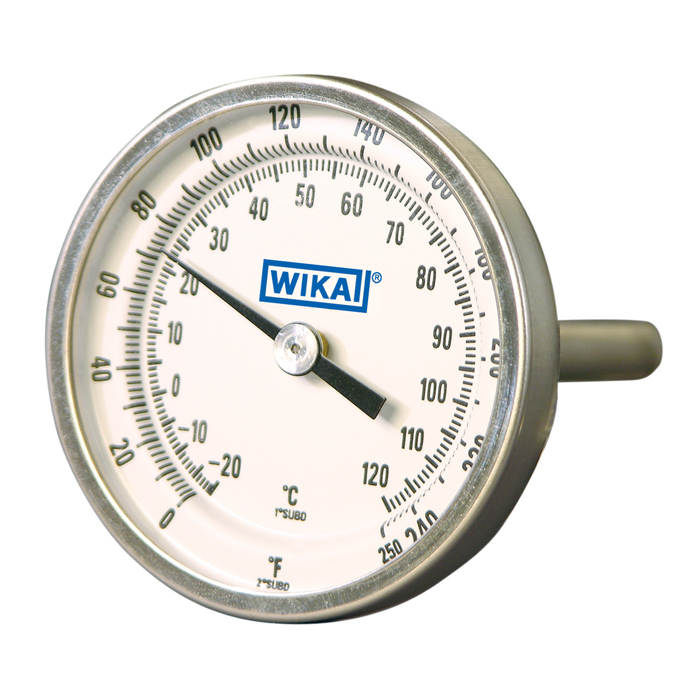

Industrial Grade - All Stainless Steel Construction, 2" Dial size, Back Connected
Application
Size2" (50.8 mm) - Type TI.20
Accuracy+ 1.0% full scale value (per ASME B40.3, Grade A)
Min. / Max. RangesFrom -100oF to (70oC) to + 1000oF (+540oC)From -50oC to +550oC (as single scale)
Working RangeSteady: full scale valueShort time: 110% of full scale value
Under / Over Range ProtectionOverlunder Range Protection≤+500oF (+260oC): Temporary up to 50% of full scale>500oF (+260oC): Continuous to +800oF (+427oC)Intrmittent up to + 1000oF (+538oC)
ConnectionMaterial: 304 stainless steelCenter back mount (CBM)¼" NPT
StemMaterial: 304 stainless steelDiameter: ¼" (6.35 mm)Length: 2 ½" to 24" (63.5 mm to 609.6 mm)
Measuring ElementBi-metal helix
CaseMaterial: 304 stainless steel; hermetically sealed per ASME B40.3 standard
DialWhite aluminum, dished, with black markings
PointerBlack aluminum
Standard ScalesSingle: Fahrenheit or CelsiusDual: Fahrenheit (outer) and Celsius (inner)
WindowFlat instrument glass
Weight5 oz. (142g) 2" dial; Add 1 oz. (28g) for every 2" (50mm) of stem length
DampeningInert gel to minimize pointer oscillation
Order Options (min. order may apply)Special scales and dial markings; Acrylic windowsCalibration certification traceable to NIST
WarrantyLimited one year warranty as stated in WIKA's Terms & Conditions of Sale
