Model TXS

Mini temperature switch

AISI 316, IP 66

Selected documents
Sales contact Questions? Find a contact in your vicinity.

Applications

  • Temperature monitoring and direct switching of electrical loads
  • Control and regulation of industrial processes
  • Universally suitable for machine building, plant, vessel, apparatus construction and food industry, chemical industry, petrochemical industry
  • For measuring points with limited space

Special Features

  • Case from AISI 316 (1.4401)
  • Ingress protection IP 66, NEMA 4
  • Ambient temperature -40 ... +85 °C
  • 1 switch point, SPDT, up to 5 A/AC 220 V
  • Directly connected or via capillary (up to 10 m capillary

Description

These high-quality and robust mini temperature switches have been developed especially for safety-critical applications. High quality and product manufacturing ensures reliable monitoring of your plant. The manufacturer Cella is certified to ISO 9001. In production, the switches are traced by quality assurance software at every step and subsequently are 100 % tested.

All wetted parts materials are from AISI 316 stainless steel as standard. Each switch family is available in IP 65, Ex-ia or Ex-d versions.

In order to ensure as flexible operation as possible, the temperature switches are fitted with micro switches, which enable the switching of an electrical load of up to 5 A/ AC 220 V directly. For smaller contact ratings, such as for PLC applications, hermetically-sealed micro switches with gold-plated contacts can be selected as an option.

With its flexible AISI 316 spiral protection hose, the model TXS temperature switch is extremely robust and guarantees optimal operating characteristics for applications requiring particularly high corrosion protection.

CELLA

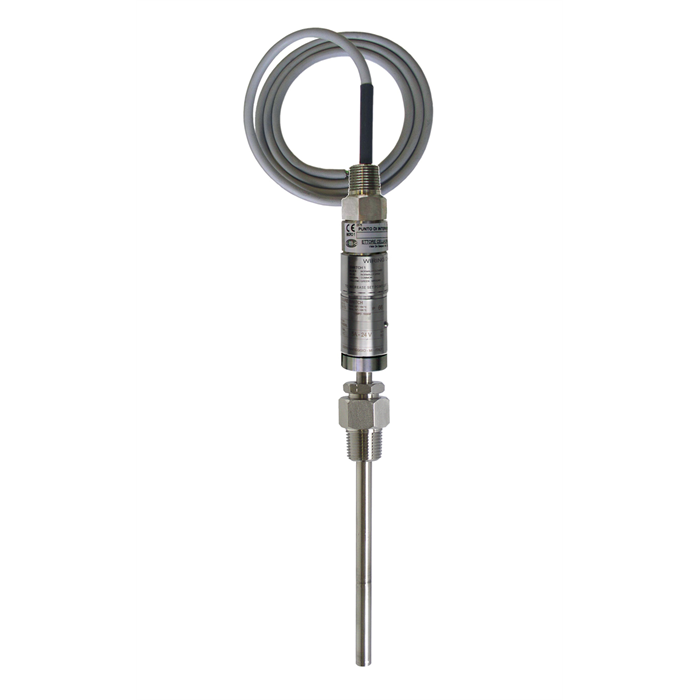

Direct mounting
  • Direct mountingRemote mounting with capillary
