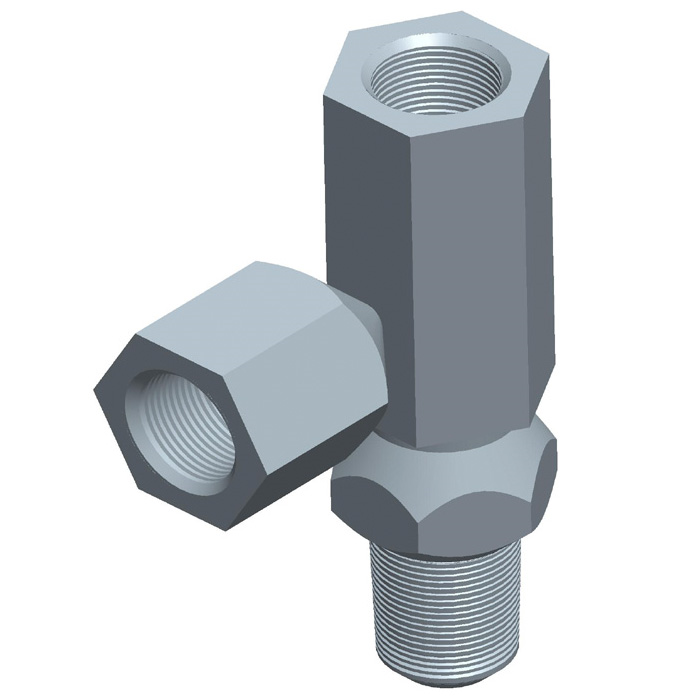

Model Wellhead

Wellhead adapter

For pressure transmitter and guage local and remote pressure indication

Selected documents
Sales contact Questions? Find a contact in your vicinity.


  • Wellhead monitoring
  • Natural gas compressors
  • Pipeline pressure
  • General industrial applications

Special Features

  • Manufactured using NACE MR-01-75 compliant materials
  • Rated for up to 10,000 psig
  • Fixture meets both ASME and EN pressure test and leak test requirements
  • Engineered to meet the harsh demands of upstream oil and gas pressure monitoring applications
  • Compatible with most industrial and hazardous area transmitters and gauges


The WIKA wellhead fixtue provides a convenient, low-cost  method of providing both local and remote pressure indica-tion for a variety of applications.  Depending on the selected combination of  pressure gauge and transmitter, it is suitable for installation in hazardous areas including upstream oil and gas wellhead plunger lift controls. The stainless steel fixtue is manufactured using NACE MR-01-75 compliant materials for improved resistance to sulfide stess cracking in sour gas applications.

The fixtue can also be used in many industrial applications where both local and remote pressure monitoring is required at the same measurement point.

The fixtue can be installed in a vertical or horizontal orienta-tion.  It is available in ½” female x ½” female x ½” NPT male or ¼” female x ¼” female x ¼” NPT male.

Can be installed with ball valves and many other accessories to facilitate servicing and installation.

Wellhead adapter
  • Wellhead adapter
