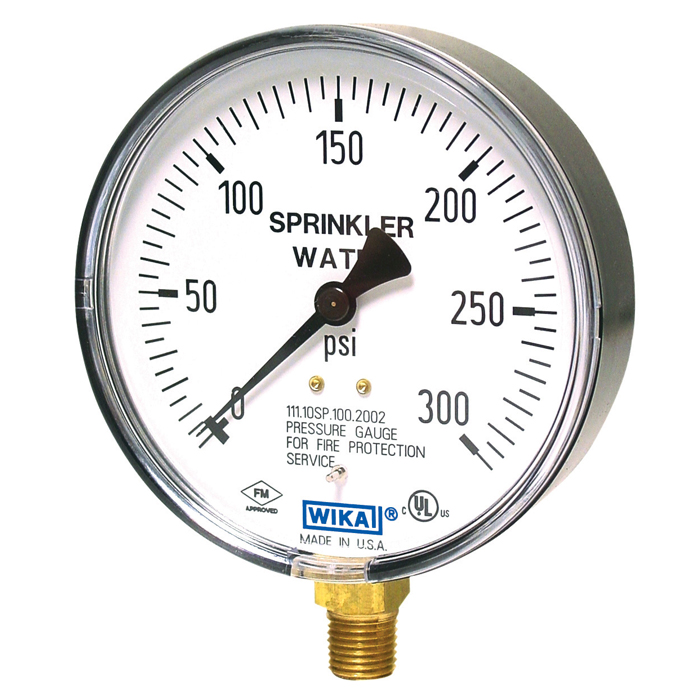

Sprinkler Gauge, Standard Series
DesignEN 837-1 & ASME B40.100
Sizes4” (100 mm)
Accuracy class± 3/2/3% of span (ASME B40.100 Grade B)
Ranges0/80 psi (5.5 bar), retard to 250 psi (17 bar), air0/300 psi (20 bar), 0/400 psi (28 bar), 0/600 psi (40 bar), water
Working pressureSteady: 3/4 of full scale valueFluctuating: 2/3 of full scale valueShort time: full scale value
Operating temperatureAmbient: -40°F to 140°F (-40°C to 60°C)Media: 140°F (+60°C) maximum
Temperature errorAdditional error when temperaturechanges from reference temperatureof 68°F (20°C) +0.4% of span for every 18°F (10°K) rising or falling.
Bourdon tubeMaterial: copper alloy
Pressure connectionMaterial: copper alloy1/4“ NPT lower mount (LM)
MovementCopper alloyC-shape
DialWhite aluminum with stop pin; black and red lettering
PointerBlack aluminum
CaseBlack polycarbonate
WindowSnap-in clear polycarbonate
ApprovalsUL listed (UL-393)Factory Mutual
