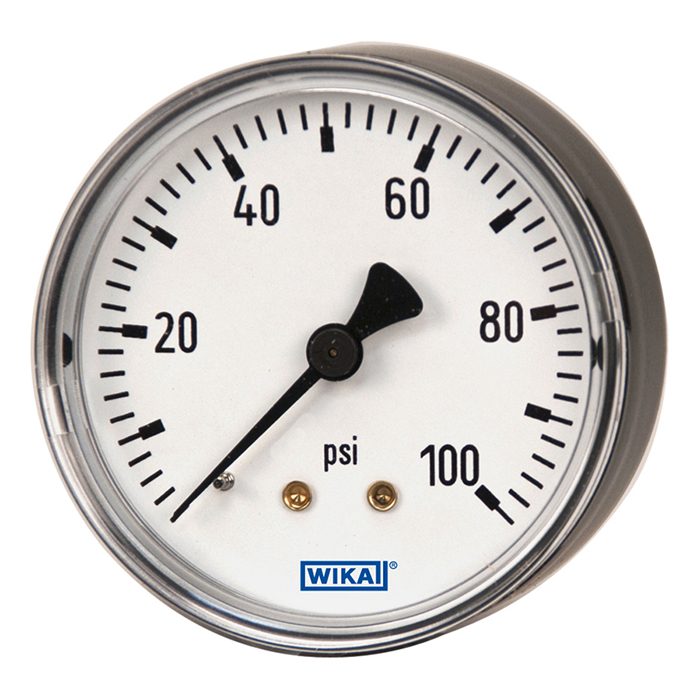

ABS Plastic or Painted Steel Case Standard Series - Center Back Mount
Applications
DesignEN 837-1 & ASME B40.100
Sizes (All sizes not stocked)1½", 2", 2½" and 4" (40, 50, 63, and 100 mm)3½" (94 mm) with u-clamp only
Accuracy class+ 3/2/3% of span (ASME B40.100 Grade B)
Ranges (All ranges not stocked)Vacuum/Compound to 30"Hg (-1 bar) / 0 / 200 psi (16 bar)Pressure from 15 psi (1 bar) to 6,000 psi (400 bar)or other equivalent units of pressure or vacuumReceiver scales 3...15 psi (0.2...1 bar)
Working pressureSteady: 3/4 of full scale valueFluctuating: 2/3 of full scale valueShort: full scale value
Operating temperatureAmbient: -40°F to 140°F (-40°C to 60°C)Media: 140°F (+60°C) maximum
Temperature errorAdditional error when temperature changes from reference temperature of 68°F (20°C) +0.4% of span for every 18°F (10°K) rising or falling.
Pressure connectionMaterial: copper alloyCenter back mount (CBM)1/8" or 1/4" NPT
Bourdon TubeMaterial: copper alloy≤ 870 psi (60 bar): C-shape> 870 psi (60 bar): Helical
MovementCopper alloy
DialWhite plastic with stop pin (1½", 2", 2½")White aluminum with stop pin (3½" & 4")Black or black and red lettering
PointerBlack ABS plastic (1½", 2", 2½")Black aluminum (3½" & 4")
CaseBlack ABS plastic(3½" with black-painted steel)
WindowSnap-in acrylic ( 1½", 2", 2½", & 4")Threaded polycarbonate (3½")
Model 910.10
Brass, steel or stainless steel
Model 910.18
Model 910.14
For pressure measuring instruments
Model 910.17
For measuring instruments and instrumentation accessories
Model 113.13
Liquid filling, plastic case
Model 113.53
Stainless Steel Case / Liquid-Filled
Model 111.10SP
Sprinkler Gauge, Standard Series
Model 111.11PM
Panel Mount Gauge, Standard Series
Model 111.10
ABS Plastic or Painted Steel Case Standard Series - Lower Mount
Model 111.11RF
Refrigeration Gauge Standard Series
