Economical Stainless Steel Gauge
Applications
DesignASME B40.100 & EN 837-1
Sizes4” (100mm)
Accuracy class± 3/2/3% of span (ASME B40.100 Grade B)
RangesPressure from 30 psi (2 bar) to 15,000 psi (1,000 bar)or other equivalent units of pressure
Working pressureSteady: 3/4 scale valueFluctuating: 2/3 full scale valueShort time: full scale value
Operating temperatureAmbient: -40°F to +140°F (-40°C to +60°C) - dry-4°F to +140°F (-20°C to +60°C) - glycerine filled-40°F to +140°F (-40°C to +60°C) - silicone filledMedium: +212°F (+100°C) maximum
Temperature errorAdditional error when temperature changes from reference temperature of 68°F (20°C) ±0.4% of span for every 18°F (10°K) rising or falling.
Weather protectionWeather tight (NEMA 4X / IP66)
Pressure connectionMaterial: 316L stainless steelLower mount (LM)1/4” or 1/2” NPT
Bourdon tubeMaterial: 316L stainless steel≤ 1,000 psi (70 bar): C-shape,> 1,000 psi (70 bar): Helical
MovementStainless steel
DialWhite aluminum with black lettering
PointerBlack aluminum, non-adjustable
Case304 stainless steel with vent plug and SS polished crimp ring. Case welded to pressure connection.
WindowPolycarbonate with Buna-N gasket
Case FillGlycerine 99.7% (133.53)
Model 131.11
Stainless Steel Series
Model 213.53DW
Stainless Steel Case Drinking Water Series,Liquid Filled
Models 212.54, 213.54
Stainless Steel Case
Model 233.55
All Stainless Steel Construction, Panel Builder Gauge
Models 232.30, 233.30
Stainless Steel Series, Solid Front Case
Model 213.53
Model 212.53 - Dry Case Model 213.53 - Liquid-filled Case

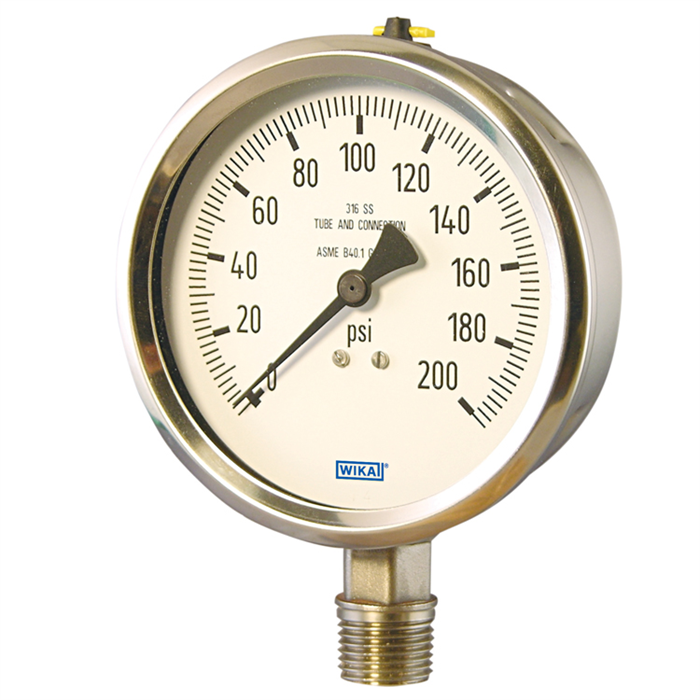

Bourdon Tube Pressure Gauges - 4" (100 mm) Model 132.53 - Dry Case Model 133.53 - Liquid-filled Case
