This product replaces the Type 612.11.
Accuracy
0.066% of full scale
Range
-30" Hg -1,000 psig
Repeatability
0.03% of full scale
Sensitivity
0.01% of full scale
Hysteresis
0.1% of full scale for ranges of 150 psi and below;
0.2% of full scale for 200 psi and above
Maximum temperature effect
0.1% of full scale per 10°C/18°F change from reference temperature 23°C/73.4°F
Scale length
Approx. 45" through 2 pointer revolutions
Dial diameter
8½"
Pressure element volume
Ranges <150 psi 6.9 cc with pointer at zero 8.6 cc
At full scale ranges 200 psi and above 10 cc.
For the range 0-125" water only 6.3 cc with pointer at zero; 8.0 cc, at full scale
Case pressure
Cases are open to atmosphere.
Case connections
150 psi and below, ⅛" female NPT, 200 psi and above, ¼" female NPT built-in stainless steel filter at the bottom of case
Case construction
Aluminum with tempered-glass window, flush mounted
Zero adjustment
Accessible through both the front and the back of the case
Options
-
Calibration in most metric units available at no extra cost.Other calibration units and dual scale graduations are available at extra cost.
-

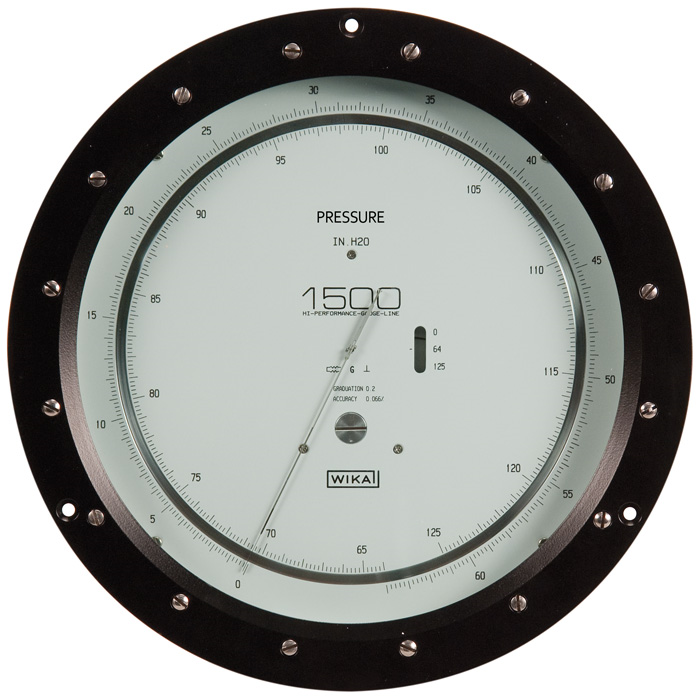

Gauge 1500 8.5" is available installed in a compact, suitcase-type carrying case with a mounted panel for the gauge. The cover is easily removed and connections can be made without removing the gauge from the case
Note: Gases must be non-corrosive, no liquid service.
Weight and shipping weight
12 lbs.
Ordering information
Please specify ordering number, range, and mounting angle, (extra cost if mounting angle other than vertical)
