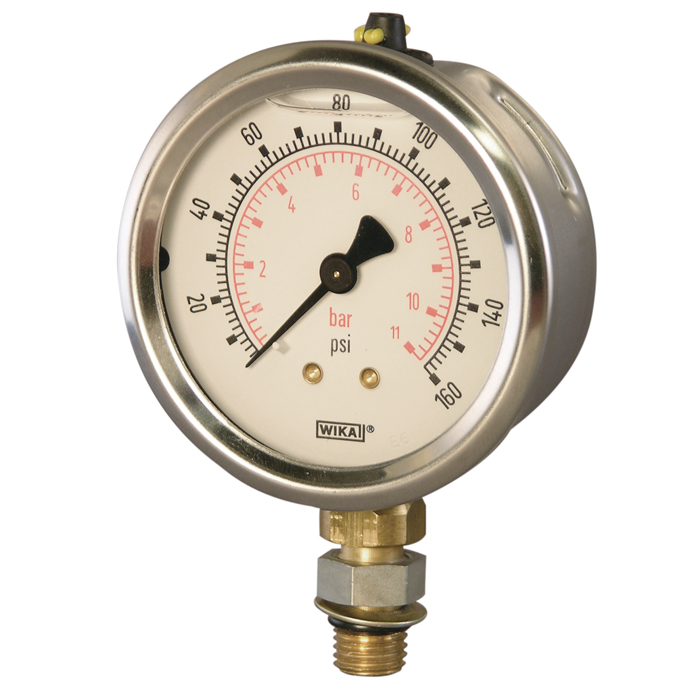

Dry or Liquid Filled Gauge with SAE Connection
Applications
DesignASME B40.100 & EN 837-1
Sizes2½” (63 mm)
Accuracy class± 2/1/2% of span (ASME B40.100 Grade A)
RangesVacuum / Compound to 200 psi (16 bar)Pressure from 15 psi (1 bar) to 15,000 psi (1,000 bar)or other equivalent units of pressure or vacuum
Working pressureSteady: 3/4 scale valueFluctuating: 2/3 full scale valueShort time: full scale value
Operating temperatureAmbient: -40°F to +140°F (-40°C to +60°C) - dry-4°F to +140°F (-20°C to +60°C) - glycerine filled-40°F to +140°F (-40°C to +60°C) - silicone filledMedium: +140°F (+60°C) maximum
Temperature errorAdditional error when temperature changes from reference temperature of 68°F (20°C) ±0.4% of span for every 18°F (10°K) rising or falling.
Weather protectionWeather tight (NEMA 4X / IP 66)
Pressure connectionMaterial: copper alloyLower mount (LM)7/16” - 20 SAE with o-ring, washer and lock nut
Bourdon tubeMaterial: copper alloy≤ 870 psi (60 bar): C-shape copper alloy> 870 psi (60 bar): Helical copper alloy
MovementCopper alloy
DialWhite ABS with stop pin and with black lettering
PointerBlack aluminum
Models 232.53AM, 233.53AM
Stainless Steel Refrigeration Ammonia Gauge
Model 213.40
Industrial Series Liquid Filled
Model 232.54XMAS
Tree Gauge, All Stainless Steel Construction
Models 212.54, 213.54
Stainless Steel Case
Models 132.53, 133.53
Economical Stainless Steel Gauge
Models 232.30, 233.30
Stainless Steel Series, Solid Front Case
Bourdon Tube Pressure Gauges Model 212.53S - Dry Case Model 213.53S - Liquid-filled Case
