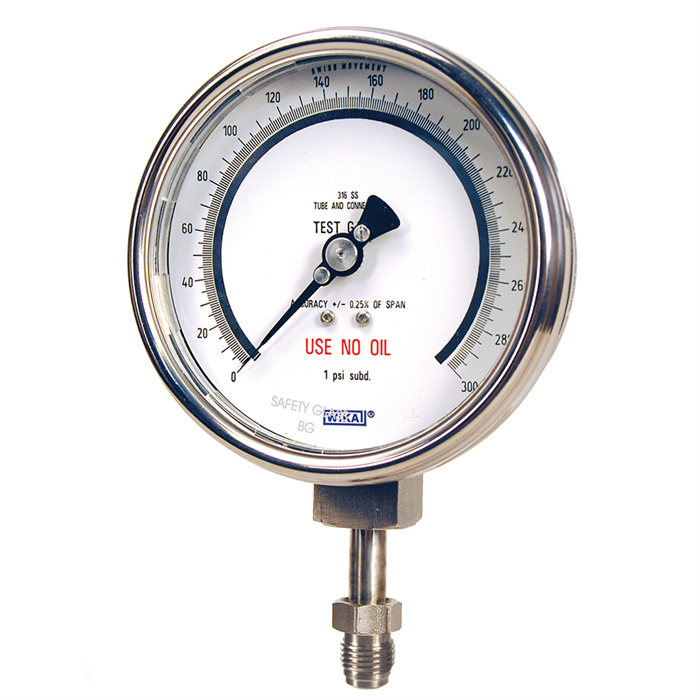

Model 332.54-UHP LM-All Stainless Steel Construction
Applications
Inspector’s Test gauge
Special features
All stainless steel construction
Removable bezel ring
Calibration in accordance with NIST
DesignASME B40.100
Size4" (100mm)
Accuracy class
+ 0.25% of span (ASME B40.1 Grade 3A) for pressure range -30" Hg to 600 psi
+ 0.5% of span (ASME B40.1 Grade 2A) for pressure range > 600 psi and < 2,000 psi
+ 0.25% of span (ASME B40.0 Grade 3A) for pressure range > 2,000 psi to 5,000 psi
RangesVacuum 30" HgPressure from 15 psi to 5,000 psi (all ranges not available in 0.25% accuracy) or other equivalent units of pressure or vacuum
Pressure ConnectionMaterial: Face-Seal Nut, 316SS Face-Seal Gland 316L SSPosition: Lower Mount (LM)Type of Connection: Swivel Male (FSM)Swivel Female (FSF)
SocketMaterial: 316LSS
Bourdon TubeMaterial: 316 SS30" Hg (Vac) to 1,000 psi C-type1,500 PSI to 5,000 psi helical type
MovementStainless steel
DialWhite aluminum with black lettering and mirrored band
PointerBlack aluminum, micrometer adjustable, with knife edge
Case304 SS with vent plug and polished stainless steel bayonet ring. Welded case to socket connection.
Standard ScalePSI
WindowLaminated safety glass
Working RangeSteady: Full scale valueFluctuating: 0.9 x full scale valueShort time: 1.3 x full scale value
Operating TemperatureAmbient: -40°F to 140°F (-40°C to 60°C)Media: max. 212°F (+100°C)
Temperature errorAdditional error when temperature changes from reference temperature of 68°F (20°C) ±0.4% for every 18°F (10°C) rising or falling. Percentage of span.
Window GasketBuna-N
Weather protectionWeather tight (NEMA 4X / IP 65)
Model 130.15
High Purity Series
Model 432.25.2"
For UHP (ultra high purity) applications, flow-through, nominal size 2"
Model 230.25
Ultra High Purity (UHP) Series
LM-All Stainless Steel Construction
