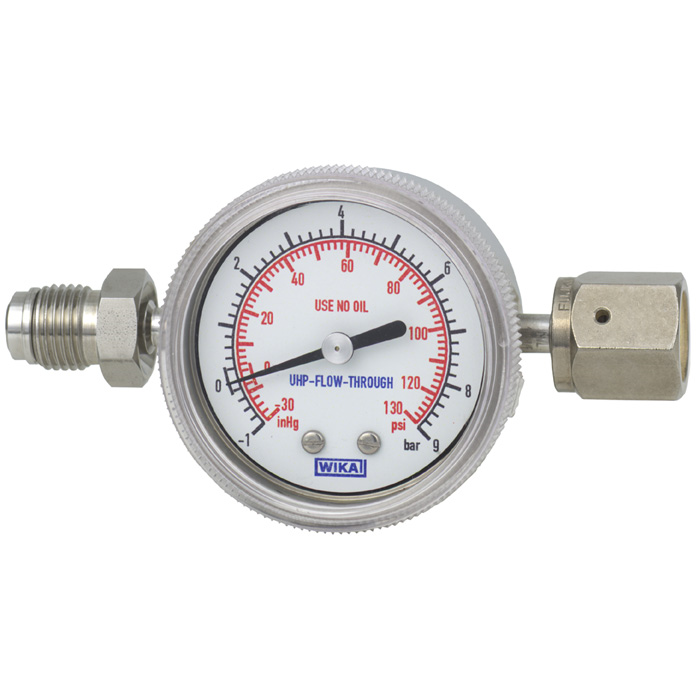

For UHP (ultra high purity) applications, flow-through, nominal size 2"
Nominal size2"
Accuracy classGrade B according to ASME B40.1Higher accuracy class on request
Scale ranges-1 . 4 bar / -30 inHg ... 60 psi-1 . 9 bar / -30 inHg ... 130 psi
Operating temperaturAmbient: -10 . + 60 °CMedium: +60 °C maximum
Pressure connectionAll ultra high purity gas fittings available
Pressure elementInconel
DialAluminium, white, black/red lettering, dual scale bar/psi
PointerAluminium, black
CaseStainless steel 316L, electropolished
WindowPolycarbonate, twist-lock
