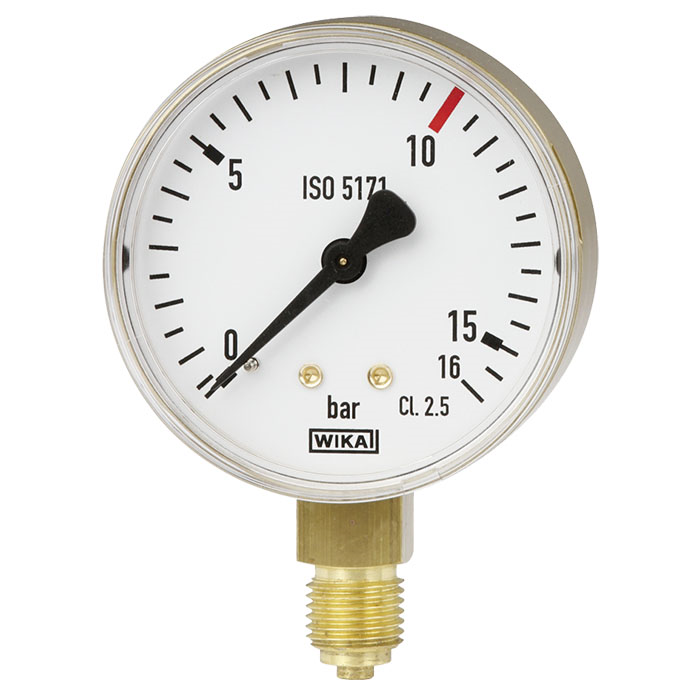

Compressed Gas Regulator Gauge, Standard Series
Applications
DesignASME B40.100
Sizes1½”, 2” & 2½” (41, 53 & 68 mm)
Accuracy class± 3/2/3% of span (ASME B40.100 Grade B)
RangesVacuum / Compound to 200 psi (16 bar)Pressure from 15 psi (1 bar) to 6,000 psi (400 bar)or other equivalent units of pressure or vacuum
Working pressureSteady: 3/4 of full scale valueFluctuating: 2/3 of full scale valueShort time: full scale value
Operating temperatureAmbient: -40°F to 140°F (-40°C to 60°C)Media: 140°F (+60°C) maximum
Temperature errorAdditional error when temperature changesfrom reference temperature of 68°F (20°C)+0.4% of span for every 18°F (10°K) rising or falling.
Pressure connectionMaterial: Copper-AlloyLower Mount (LM): 1½”, 2” and 2½”Center Back Mount (CBM); 1½”and 2”1/8” NPT, ¼” NPT, limited to wrench flat areaRestrictor Press-fit, 0.012" orifice
Bourdon TubeMaterial: copper alloy≤ 870 psi (60 bar): C-shape> 870 psi (60 bar): Helical
MovementCopper alloy
DialWhite aluminum with stop pin and black lettering“USE NO OIL” in red
PointerBlack aluminum, non-adjustable
Case1½”: gold-painted steel2” & 2½”: SS Z&N coated (=brass polished look) or gold-painted steel
WindowTwist-lock clear polycarbonate
Model 910.17
For measuring instruments and instrumentation accessories
Model 910.14
For pressure measuring instruments
Model 910.18
Model 111.10R
Refrigeration Gauge, Standard Series
Model 213.53DW
Stainless Steel Case Drinking Water Series,Liquid Filled
Model 111.25CT
Contractor Gauge Standard Series
Model 111.10DW
Black Plastic Drinking Water Series, Lower Mount
Model 113.53
Stainless Steel Case / Liquid-Filled
Model 113.13
Liquid filling, plastic case
