Panel Mount Gauge Standard Series
Applications
DesignEN 837-1 & ASME B40.100
Sizes1½“ & 2“ (41 & 53 mm)
Accuracy Class±3/2/3% of span (ASME B40.100 Grade B)
RangesVacuum / Compound to 200 psi (16 bar)Pressure from 15 psi (1 bar) to 6,000 psi (400 bar)or other equivalent units of pressure or vacuum
Working PressureSteady: 3/4 of full scale valueFluctuating: 2/3 of full scale valueShort Time: full scale value
Operating TemperatureAmbient: -40°F to 140°F (-40°C to 60°C)Media: 140°F (+60°C) maximum
Temperature ErrorAdditional error when temperature changesfrom reference temperature of 68°F (20°C)±0.4% of span for every 18°F (10°K) rising or falling.
ConnectionMaterial: Copper alloy1/8“ or 1/4“ NPT Center back mount (CBM)
Bourdon TubeMaterial: Copper alloy≤ 870 psi (60 bar): C-shape> 870 psi (60 bar): Helical
MovementCopper alloy
DialWhite ABS with stop pin and black lettering
PointerBlack ABS
Case1½“ (40 mm): Black ABS with SS crimped profile ring2" (50 mm): Black ABS with ABS stand-off ring and SS crimped profile ring
WindowSnap-in acrylic
U-clamp BracketZinc-plated steel with two zinc-platedslotted screws
Model 113.53
Stainless Steel Case / Liquid-Filled
Model 111.11PM
Panel Mount Gauge, Standard Series
Models 111.11, 111.31
Compressed Gas Regulator Gauge, Standard Series
Model 111.10
ABS Plastic or Painted Steel Case Standard Series - Lower Mount
Model 111.25CT
Contractor Gauge Standard Series
Model 111.12
ABS Plastic or Painted Steel Case Standard Series - Center Back Mount

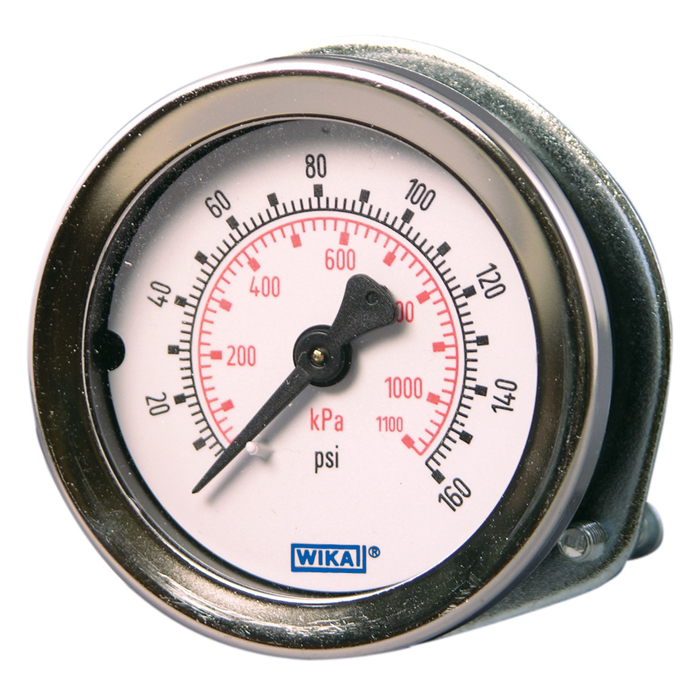

Bourdon Tube Pressure Gauge Model 111.16PM 1.5"
