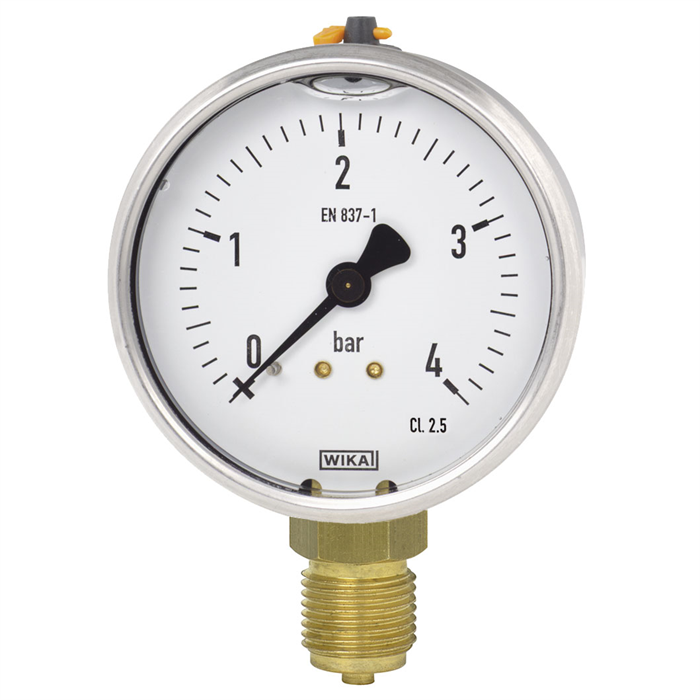

Stainless Steel Case / Liquid-Filled
Applications
DesignEN 837-1 & ASME B40.100
Nominal Size1.5” (40 mm)
Accuracy class± 2.5% of span
Scale Ranges0/30 psi (2 bar) to 0/5000 psi (350 bar)or other equivalent units of pressure or vacuum
Working PressureSteady: 3/4 of full scale valueFluctuating: 2/3 of full scale valueShort time: full scale value
Operating TemperatureAmbient: -4°F to +140°F (-20°C to +60°C)Medium: +140°F (+60°C)
Temperature errorAdditional error when temperature changes from reference temperature of 68°F (20°C) + 0.4% of span for every 18°F (10°K) rising or falling
Weather protectionIP 66 per EN 60 529 / IEC 529
