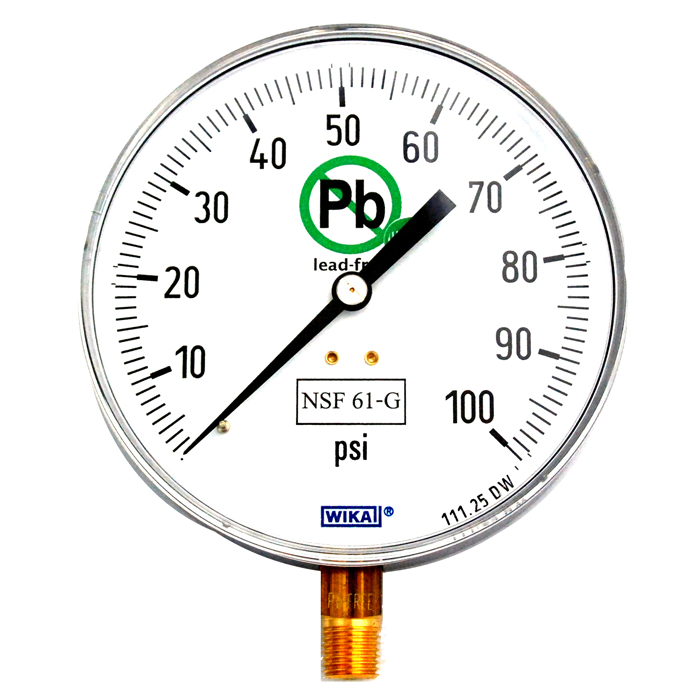

Contractor Gauge for Drinking Water Application, Drinking Water Series - 4½" SS Case
DesignASME B40.100
Sizes (All sizes not stocked)4½" (115 mm)
Accuracy class±1% of span (ASME B40.100 Grade 1A)
RangesVacuum/Compound to 200 psi (16 bar)Pressure from 15 psi (1 bar) to 600 psi (40 bar)or other equivalent units of pressure or vacuum
Working pressureSteady: 3/4 of full scale valueFluctuating: 2/3 of full-scale valueShort time: full-scale value
Operating temperatureAmbient: -40°F to 140°F (-40°C to 60°C)Media: 140°F (+60°C) maximum
Temperature errorAdditional error when temperature changes from reference temperature of 68°F (20°C) +0.4% of span for every 18°F (10°K) rising or falling.
Pressure connectionMaterial: Lead-free copper alloy (lead content ≤0.25%) 1/4” NPT lower mount (LM)
Bourdon TubeMaterial: Lead-free copper alloy C-shape
SolderNo-lead solder
MovementCopper alloy
DialWhite aluminum with stop pin and black lettering
PointerBlack aluminum
CaseStainless steel, matte finish
WindowSnap-in polycarbonate
Model 111.12DW
Black Plastic Case Drinking Water Series, Center Back Mount
Model 113.53
Stainless Steel Case / Liquid-Filled
Model 111.10DW
Black Plastic Drinking Water Series, Lower Mount
Models 111.16, 111.26
Panel Mount Gauge For Metric Size Panel Cutouts Standard Series
Models 111.11, 111.31
Compressed Gas Regulator Gauge, Standard Series
Model 111.10
ABS Plastic or Painted Steel Case Standard Series - Lower Mount
Bourdon Tube Pressure Gauge Model 111.25DW
