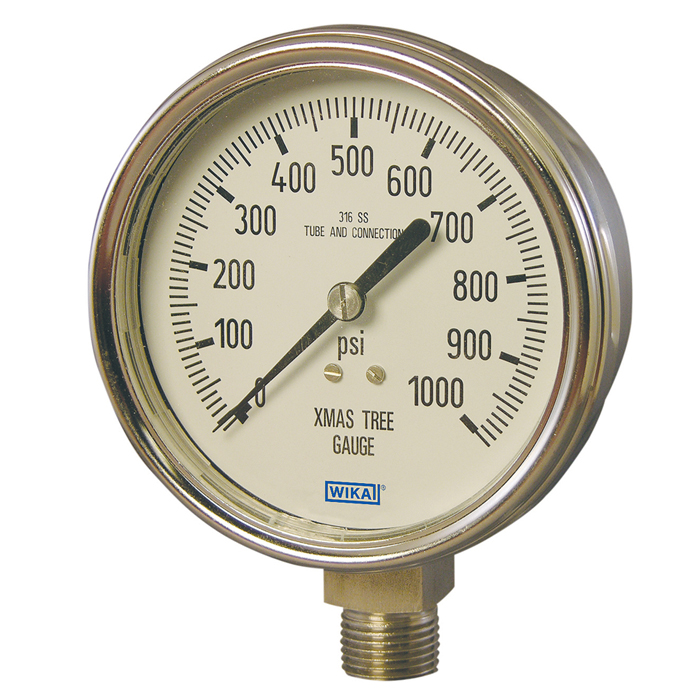

Tree Gauge, All Stainless Steel Construction
Application
Designed specifically for oilfield well heads. Suitable for corrosive environments compatible with 316 stainless steel wetted parts for liquid or gaseous media which will not obstruct the pressure system.
DesignASME B40.100 and EN 837-1
Sizes4“ (100 mm)
Accuracy Class± 1.0% of span per ASME B40.100, Grade 1A
Ranges (All ranges not stocked)Vacuum / Compound up to 200 psi (16 bar)Pressure from 15 psi (1 bar) to 15,000 psi (1,000 bar) or other equivalent units of pressure or vacuum
Working PressureSteady: Full scale valueFluctuating: 0.9 x full scale valueShort Time: 1.3 x full scale value
Operating TemperatureAmbient: -40°F to 140°F (-40°C to 60°C)Media: 212°F (+100°C) maximum
Temperature ErrorAdditional error when temperature changes from reference temperature of 68°F (20°C) ±0.4% of span for every 18°F (10°K) rising or falling.
Pressure ConnectionMaterial: 316L stainless steelLower Mount (LM) 1/4“ or 1/2“ NPT (limited to wrench flat area)
Bourdon TubeMaterial: 316L stainless steel≤1,000 PSI (70 bar): C-shape,>1,000 PSI (70 bar): Helical
MovementStainless steel
DialWhite aluminum with black lettering and large numerals for easy reading
PointerBlack aluminum, adjustable
Case304 stainless steel with vent plug and polished stainless bayonet ring.Welded case / socket connection.
Weather ProtectionWeather resistant (NEMA 4X / IP 66)
Window GasketBuna-N
WindowLaminated Safety Glass
