All Stainless Steel Construction, Panel Builder Gauge
Applications
DesignASME B40.100
Size2½” (63mm)
Accuracy class2½” + ASME B40.100 Grade A 2/1/2%
Scale ranges (all ranges not stocked)Vacuum/Compound up to 200 PSI (16 bar)Pressure from 15 PSI (1 bar) to 20,000 PSI (1,600 bar)or other equivalent units of pressure or vacuum
Socket Material316L Stainless Steel
MovementStainless Steel
DialWhite aluminum with black lettering; stop pin
PointerBlack aluminum
Case304 Stainless Steel with vent plug and SS crimping ring.Welded case/socket connection
Front Flange300 series Stainless Steel, polished
Working RangeSteady: ¾ of full scale valueFluctuating: 2/3 of full scaleShort time: full scale value
Bourdon TubeMaterial: 316 Stainless Steel≤1,000 PSI (70 bar): C-shape,>1,000 PSI (70 bar): Helical
Operating TemperatureAmbient: -4°F to 140°F (-20°C to 60°C)Media: 212°F (+100°C) maximum
Temperature errorAdditional error when temperature changes from reference temperature of 68°F (20°C) +0.4% of span for every 18°F (10°K) rising or falling.
Weather protectionWeather-tight (NEMA 4X/IP 65)
Vent PlugFlat rubber - over 300 PSI (20 bar)Field cuttable nipple - vacuum through 300 PSI (20 bar)With yellow vent lever - available
Restrictor316 Stainless Steel; 0.023” (0.6mm) orifice, standard
Model 213.53
Model 212.53 - Dry Case Model 213.53 - Liquid-filled Case
Model 131.11
Stainless Steel Series
Models 232.50, 233.50
Models 212.53S, 213.53S
Dry or Liquid Filled Gauge with SAE Connection
Models 212.54, 213.54
Stainless Steel Case
Model 232.54XMAS
Tree Gauge, All Stainless Steel Construction

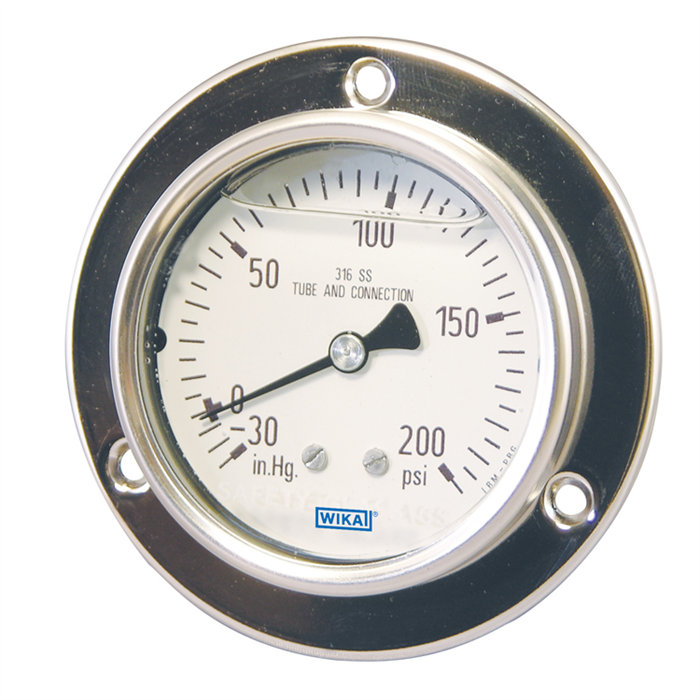

Bourdon Tube Pressure Gauge Model 233.55 LBM
