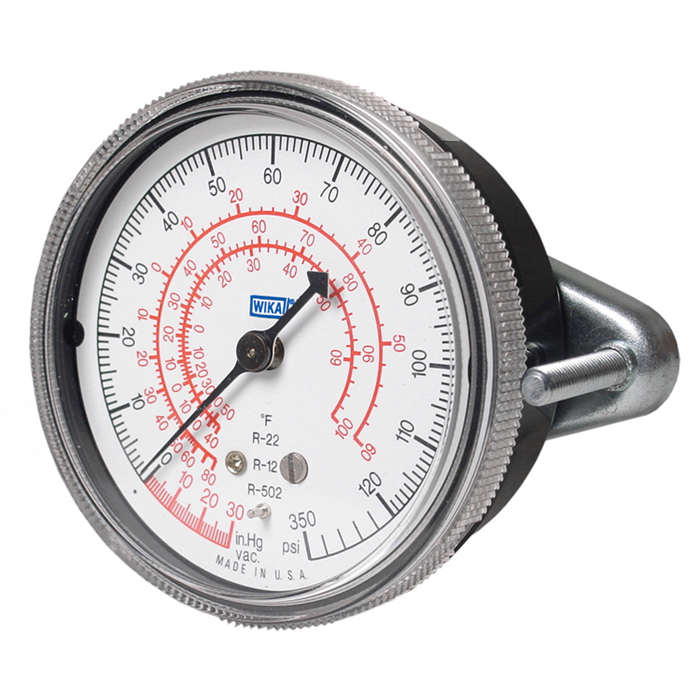

Panel Mount Gauge, Standard Series
Applications
DesignASME B40.100
Sizes2½” (68 mm)
Accuracy class± 3/2/3% of span (ASME B40.100 Grade B)
RangesVacuum / Compound to 200 psi (16 bar)Pressure from 15 psi (1 bar) to 6,000 psi (400 bar)or other equivalent units of pressure or vacuum
Working pressureSteady: 3/4 of full scale valueFluctuating: 2/3 of full scale valueShort time: full scale value
Operating temperatureAmbient: -40°F to 140°F (-40°C to 60°C)Media: 140°F (+60°C) maximum
Temperature errorAdditional error when temperature changes from reference temperature of 68°F (20°C) +0.4% of span for every 18°F (10°K) rising or falling.
Pressure connectionMaterial: copper-alloy1/8“ or 1/4“ NPT center back mount (CBM)
Bourdon tubeMaterial: copper alloy≤ 870 psi (60 bar): C-shape> 870 psi (60 bar): Helical
MovementCopper alloy
DialWhite aluminum with stop pin and black lettering.Zero-adjustment screw on dial
PointerBlack aluminum
CaseBlack ABS
WindowTwist-lock clear polycarbonate
U-clamp bracketZinc-plated steel with two threaded screws
Model 111.12
ABS Plastic or Painted Steel Case Standard Series - Center Back Mount
Model 113.13
Liquid filling, plastic case
Model 111.12DW
Black Plastic Case Drinking Water Series, Center Back Mount
Model 111.10
ABS Plastic or Painted Steel Case Standard Series - Lower Mount
Model 213.53DW
Stainless Steel Case Drinking Water Series,Liquid Filled
Model 111.25CT
Contractor Gauge Standard Series
Bourdon Tube Pressure Gauge Model
