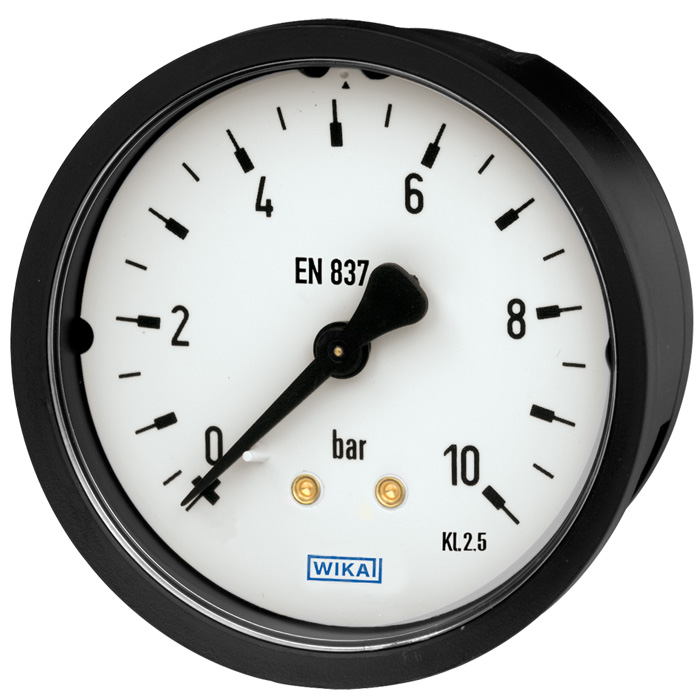

Panel Mount Gauge For Metric Size Panel Cutouts Standard Series
Applications
DesignEN 837-1 & ASME B40.100
Sizes1½” & 2” (40 & 50 mm)
Accuracy class± 3/2/3% of span (ASME B40.100 Grade B)
RangesVacuum / Compound to 200 psi (16 bar)Pressure from 15 psi (1 bar) to 6,000 psi (400 bar)or other equivalent units of pressure or vacuum
Working pressureSteady: 3/4 of full scale valueFluctuating: 2/3 of full scale valueShort time: full scale value
Operating temperatureAmbient: -40°F to 140°F (-40°C to 60°C)Media: 140°F (+60°C) maximum
Temperature errorAdditional error when temperature changesfrom reference temperature of 68°F (20°C)+0.4% of span for every 18°F (10°K) rising or falling.
ConnectionMaterial: Copper alloy1/8“ or 1/4“ NPT center back mount (CBM)
Bourdon TubeMaterial: Copper alloy≤ 870 psi (60 bar): C-shape> 870 psi (60 bar): Helical
MovementCopper alloy
DialWhite ABS with stop pin and black lettering
PointerBlack ABS
CaseBlack ABS with integral profile ring
WindowSnap-in acrylic
U-clamp bracketZinc-plated steel with two zinc-plated slotted screws
Model 910.14
For pressure measuring instruments
Model 910.17
For measuring instruments and instrumentation accessories
Model 910.10
Brass, steel or stainless steel
Model 111.10
ABS Plastic or Painted Steel Case Standard Series - Lower Mount
Model 111.16PM
Panel Mount Gauge Standard Series
Model 111.11RF
Refrigeration Gauge Standard Series
Models 111.11, 111.31
Compressed Gas Regulator Gauge, Standard Series
Model 111.12DW
Black Plastic Case Drinking Water Series, Center Back Mount
Model 111.10SP
Sprinkler Gauge, Standard Series
