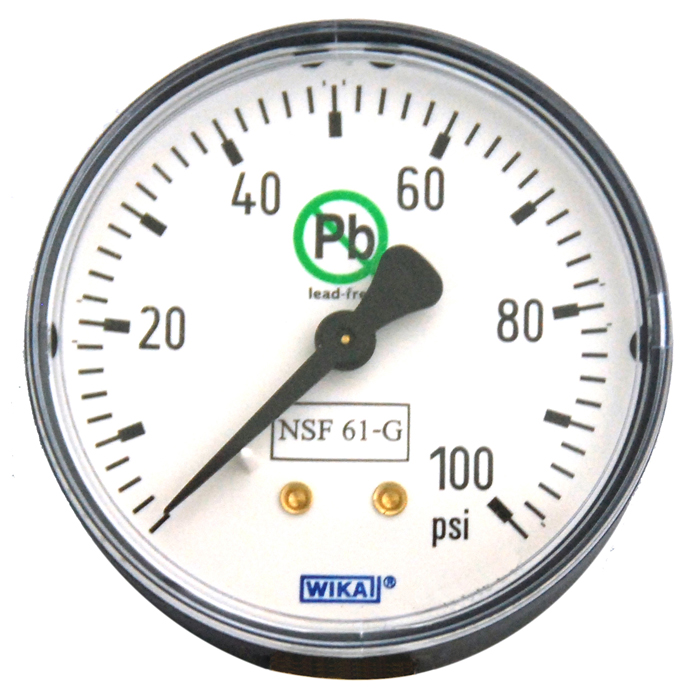

Black Plastic Case Drinking Water Series, Center Back Mount
DesignEN 837-1 & ASME B40.100
Sizes (All sizes not stocked)1½", 2" and 2½" (40, 50 and 63 mm)
Accuracy class+3/2/3% of span (ASME B40.100 Grade B)
Ranges (All ranges not stocked)Vacuum/Compound to 30" Hg (-1 bar) / 0 / 200 psi (16 bar) Pressure from 15 psi (1 bar) to 600 psi (40 bar) or other equivalent units of pressure or vacuum (Drinking water applications typically do not exceed 300 psi/20 bar)
Working pressureSteady: 3/4 of full scale valueFluctuating: 2/3 of full scale valueShort time: full scale value
Operating temperatureAmbient: -40°F to 140°F (-40°C to 60°C)Media: 140°F (+60°C) maximum
Temperature errorAdditional error when temperature changes from reference temperature of 68°F (20°C) +0.4% of span for every 18°F (10°K) rising or falling. Percentage of span.
Pressure connectionMaterial: Lead-free copper alloy (lead content ≤0.25%)Center back mount (CBM)1/8" NPT (size 1½")1/4" NPT (size 2" & 2½")
Bourdon TubeMaterial: Lead-free copper alloyC-shape
SolderNo-lead solder
MovementCopper alloy
DialWhite plastic with stop pin (1½", 2", 2½")
PointerBlack ABS plastic
CaseBlack plastic
WindowClear plastic, snap-fit
